RL32022 Alloy Steel Single-Ended Beam Load Cell

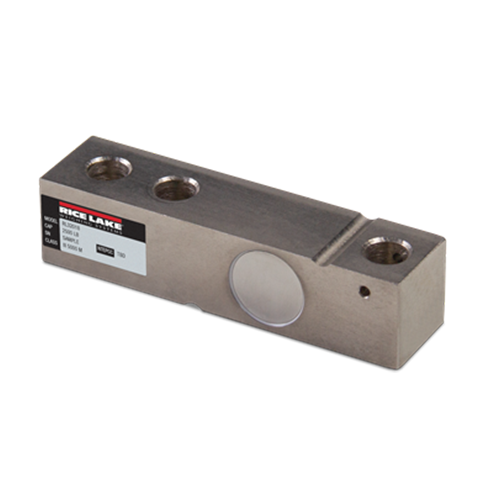

The RL32022 is a metric version of the RL32018 load cell. Constructed of alloy steel and OILM approved, this load cell’s capacities range from 300 to 5000 kg. It is sealed to IP67 standards and includes 20 ft of cable.

Rated Capacity	A	B	C	D	E	F	G	H	I	J	K	L	M	N
kg/mm
300 to 2,000	31.5	15.0	34.6	56.0	31.5	130.0	13.5	18.0	M12	76.2	25.4	15.8	6.5	3.5

Description

Full Scale Output:
2.0 mV/V ±0.05% current matchedOutput Resistance:
350 (± 3) ohm

Input Resistance:
400 (± 20) ohm

Material/Finish:
Alloy steel, nickel plated

Temperature:
Compensated range
-14 °F to 104 °F (-10° C to 40° C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.017% full scale

Insulation Resistance:
>5,000 megohm

Deflection:
0.2 to 0.4 mmCable Length:
5 m

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
OIML R60/2017-A-NL1-22.11
