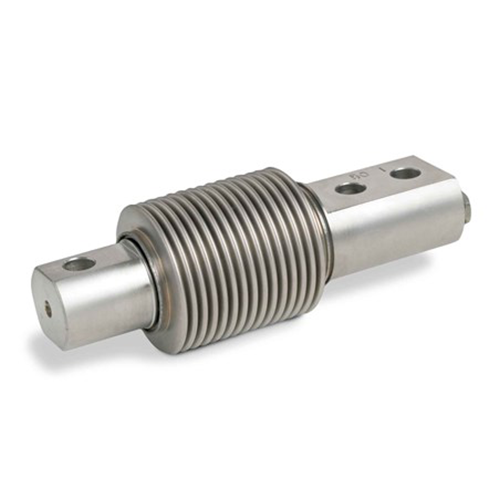

RL30 Stainless Steel Bending Beam Load Cell

Capacities range from 5 kilograms to 500 kilograms
Stainless steel finish
Welded seal
IP68/IP69K rating
ATEX available on request

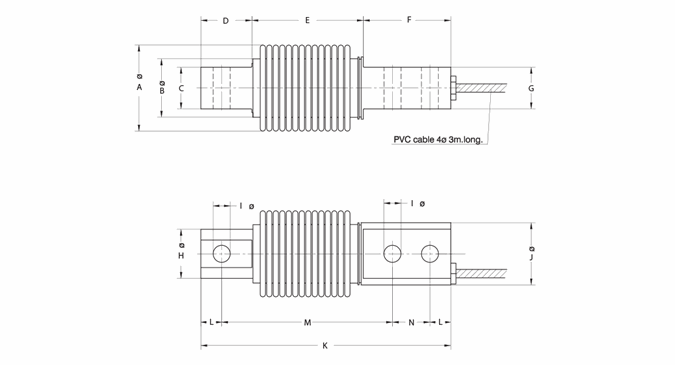

Nominal Capacity	A	B	C	D	E	F	G	H	I	J	K	L	M	N
mm
5-500 kg	42	28	20	25	54	42	20	23,5	8,2	30	120	10	82	18

Description

Full Scale Output:
2,0 mV/VOutput Resistance:
350 ohms, ± 3

Input Resistance:
400 ohms, ± 2

Material Finish:
Stainless steel

Temperature:
-10° C to 40° C

Seal Type:
Welded seal, IP68/IP69KSafe Overload:
200%

Rated Excitation:
10 V

Combined Error:
< ± 0,017%

Insulation Resistance:
> 5.000 megohms

Cable Length:
3 m

Cable Construction:
PVCCable Color Code:
Green…………………..+ Excitation
Black……………………– Excitation
Red……………………..+ Signal
White…………………..– Signal
Blue…………………….+ Sense
Yellow………………….– Sense

Warranty:
One-year limited warranty

Approvals:
OMIL
Ex – available on request
