120 Stainless Steel Compression Canister Load Cell

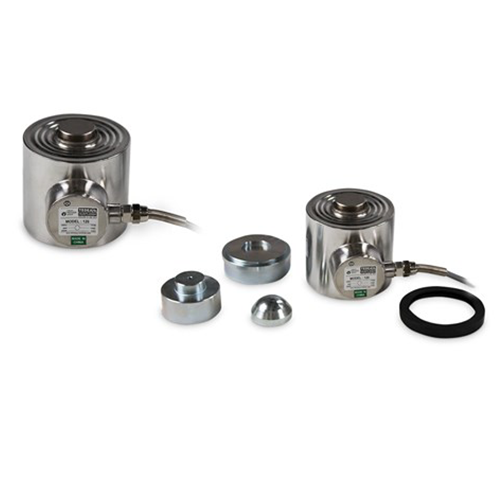

Stainless steel, welded-seal canister offered in capacities from 20,000 kg to 50,000 kg. Includes load cup and load pin.

Rated Capacity	A	B	C	D	E	F	O	R1	R2
kg/mm
20,000	138.3	112.3	72.3	50.0	32.3	69.0	88.0	15.0	150.0
30,000	138.3	112.3	72.3	50.0	32.3	69.0	88.0	15.0	150.0
50,000	155.5	115.8	74.0	50.0	32.3	69.0	88.0	35.0	300.0

Description

Full Scale Output:
1.5 mV/VOutput Resistance:
605 (± 5) ohm

Input Resistance:
670 (± 15) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
-0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP68Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% of applied load

Insulation Resistance:
2,000 megohm

Cable Length:
15 mCable Color Code:
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Brown -Sense

Warranty:
One-year limited
