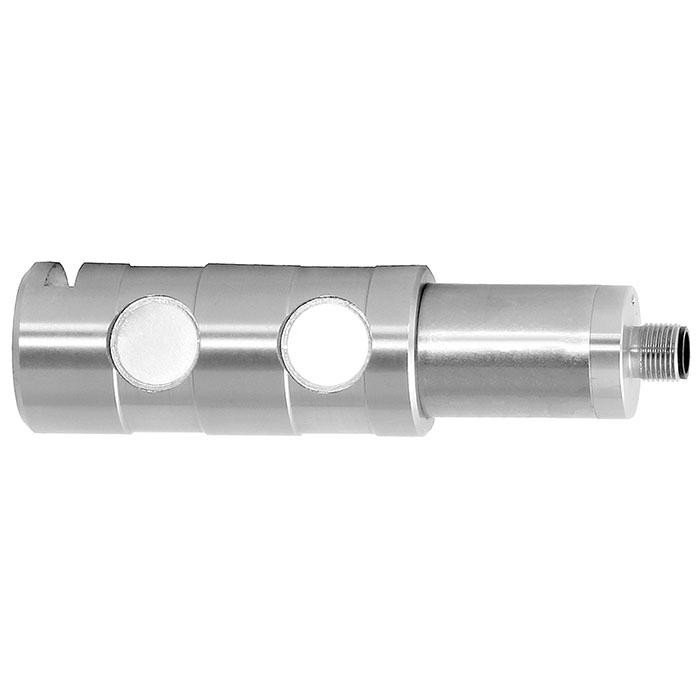

F5301 F53C1 Load Pin

The load pins of this series are often used in hoist and crane systems, as well as for special machine constructions, in pulleys, rope winches, fork heads and rolling bearings. These load pins with thin-film technology are approved for hazardous areas, such as in the mining industry, and also for use in stage/event technology. Furthermore, the load pins have been tested by the classification society, DNV GL: The DNVGL-ST-0378 standard (“Standard for offshore and platform lifting appliances”) and DNVGL-ST-0377 standard (“Standard for shipboard lifting appliances”) are fulfilled. Thus they can also be used in lifting technology in the offshore and shipping sectors. A further area of application for load pins is in manufacturing automation.

Applications

Crane systems and hoists
Industrial weighing technology
Machine building and plant construction, manufacturing automation
Theatre and stage construction
Chemistry and petrochemistry

Special features

Measuring ranges 0 … 5 kN up to 0 … 200 kN
Corrosion-resistant stainless steel design
Integrated amplifier
High long-term stability, high shock and vibration resistance
Good reproducibility, simple installation

Downloads

Description

Load pins are designed for static and dynamic measurement tasks. They directly replace existing bolts and determine the tension and compression forces in a wide range of applications.

Appropriate technical and regional approvals (ATEX, IECEx, SIL and UL) are available as an option.

The load pins of this series are made of high-strength, corrosionresistant stainless steel 1.4542, which is particularly suitable for the application areas of the force transducers. Besides the standard active current and voltage outputs (4 … 20 mA / 0 … 10 V) also digital outputs (CANopen®) are available as output signals. Redundant output signals are possible.
