Clamp Lateral

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection. Clamp connections can be secured without the use of tools when using Sanitube wing nut style clamps.

  • 3-A Certified

Description

Clamp Lateral Specifications

  • 3-A Certified

Size
(Tube OD)

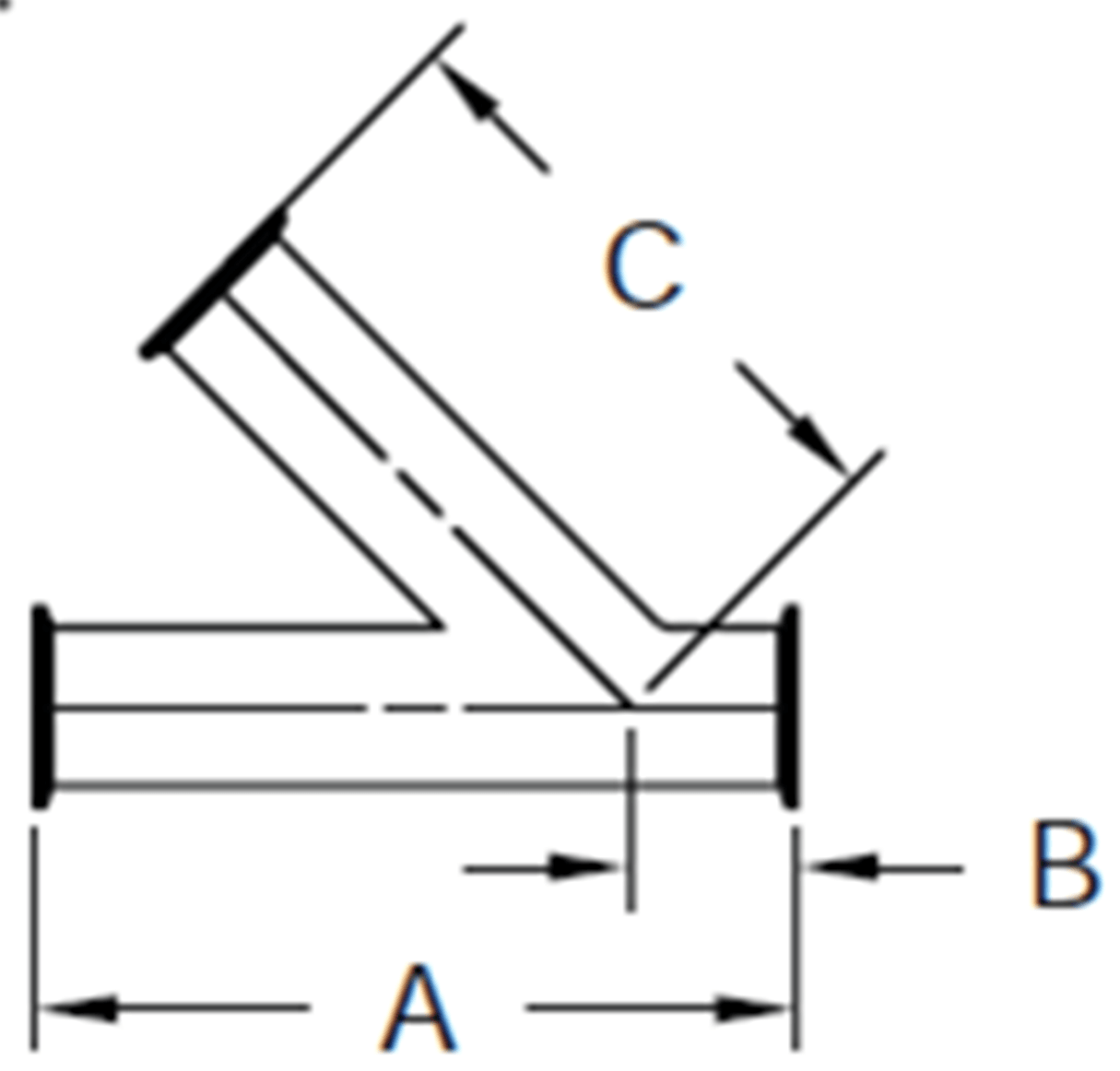

Part Number Dimensions
304L 316L A B C
1   “ 28AMP4-100 28AMP6-100 7.000 1.500 5.500
1-1/2″ 28AMP4-150 28AMP6-150 8.375 1.688 6.688
2   “ 28AMP4-200 28AMP6-200 9.750 2.125 7.625
2-1/2″ 28AMP4-250 28AMP6-250 11.000 2.000 9.000
3   “ 28AMP4-300 28AMP6-300 11.750 2.375 9.375
4   “ 28AMP4-400 28AMP6-400 14.062 2.640 11.312
6   “ 28AMP4-600 28AMP6-600 19.750 4.375 15.375
