This unique double-ended beam has been a standard model in Fairbanks truck scales for years. This NTEP Certified, zinc plated, alloy steel load cell (stainless, welded-seal in 50,000 lb is also available) is sealed with a potting compound that has been proven through the test of time in numerous applications. This unit is offered in capacities of 40,000 lb and 50,000 lb, and is affordably priced compared to other replacement load cell options in the marketplace. Each unit is provided with a 60 ft of copper over braid load cell cable.

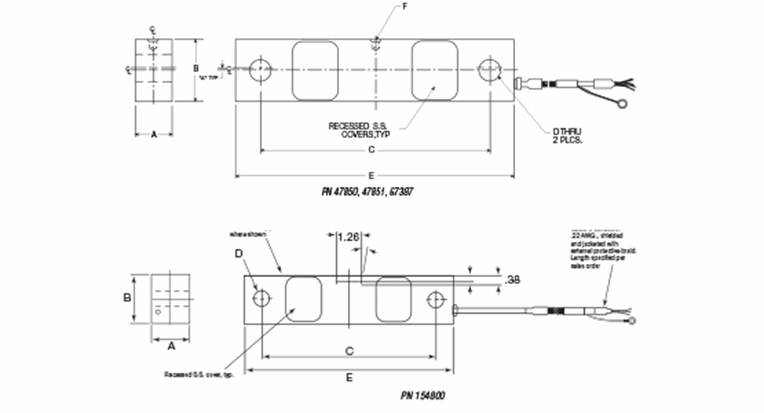

| Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| lb/in | ||||||
| 40,000 | 1.94 | 2.44 | 8.75 | 0.78 | 10.50 | 0.257 × 0.375 DP |
| 50,000 | 1.94 | 2.44 | 8.75 | 0.78 | 10.50 | 0.257 × 0.375 DP |
| Full Scale Output: 3.0 mV/VOutput Resistance: 699 to 707 ohms Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP67 Welded-seal, IP67: pn 67387Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: |
Cable Length: 60 ft, copper overbraidCable Diameter: 0.230 in Polyurethane jacket Cable Coloring: Warranty: Approvals: |
