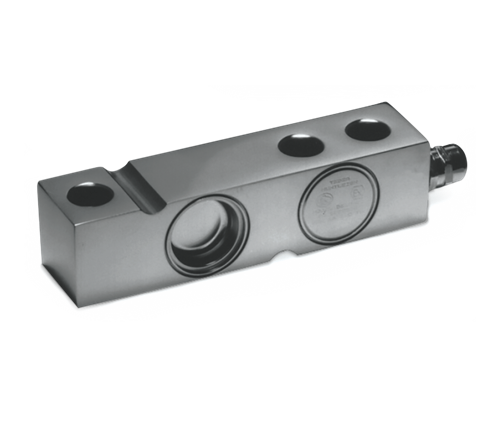

Low profile and all-welded sealing combined with high accuracy makes the 3510 ideally suited for low-profile platforms, weigh modules, tanks and silos. Hermetic sealing and polyurethane shielded cable enable this load cell to function in harsh environments while maintaining its operating specifications. Capacities range from 1,000 to 4,000 lb.

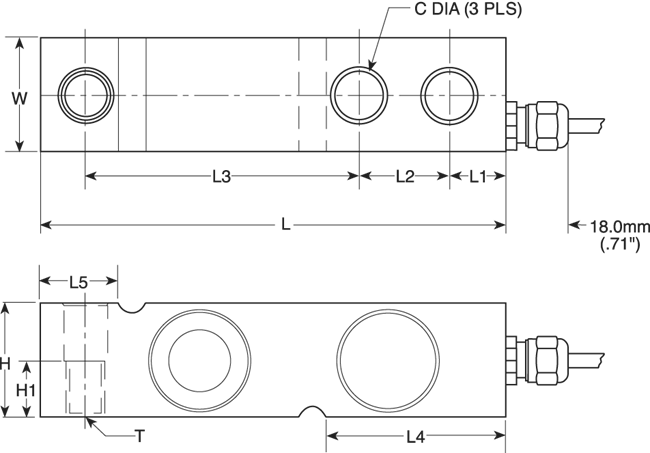

| Rated Capacity | C | C1 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | T | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||||
| 1,000 to 4,000 | 0.53 | 0.53 | 1.26 | 0.63 | 5.12 | 0.62 | 1.00 | 3.00 | 1.97 | 0.91 | 1/2-20 UNF | 1.26 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: 0.220 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
