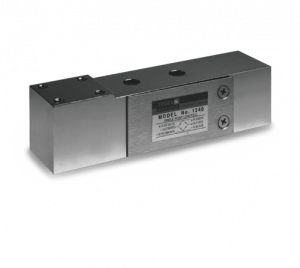

Compact in design, this low-profile single point load cell has 200 kg to 250 kg capacity range. Ideally suited for light-industrial or people-weighing applications where overall deck height is a concern. The three-beam design makes the load cell less likely to be impacted by side forces and mounting imperfections. It features stainless steel construction and humidity-resistant coating for use in harsh environments with extreme temperatures. Each unit is provided with a standard 10 ft cable.
| Rated Capacity | A | B | C | D | E | F | G | I | J | H | M |
|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||||
| 200 to 250 | 150.1 | 39.9 | 86.6 | 43.4 | 38.1 | 25.4 | 6.35 | 25.4 | 38.1 | 1/4-20 UNC x 13 DP | 1/4-28 UNF x 10 DP |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: 0.200 in PVC jacket Cable Color Code: Platform Size: Warranty: Approvals: |
