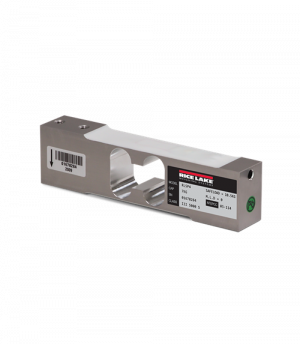

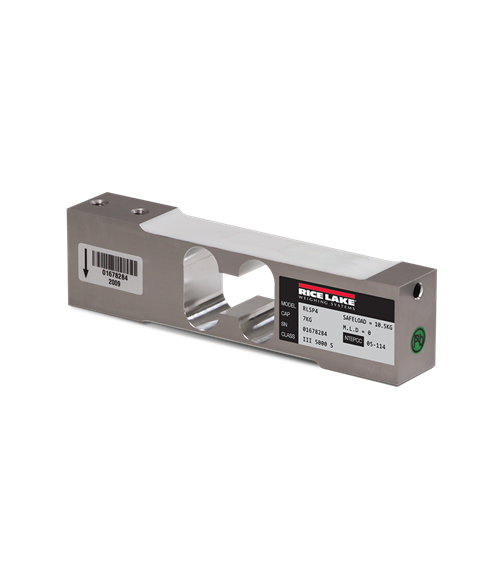

A low-profile, off-center load cell designed for retail, postal and platform scale applications. Manufactured from aluminum, moment compensated for optimal accuracy and protected by a quality gauge coating compound that provides a barrier against high humidity environments. Available in capacities ranging from 5 kg to 100 kg, and comes standard with 10 ft of load cell cable.

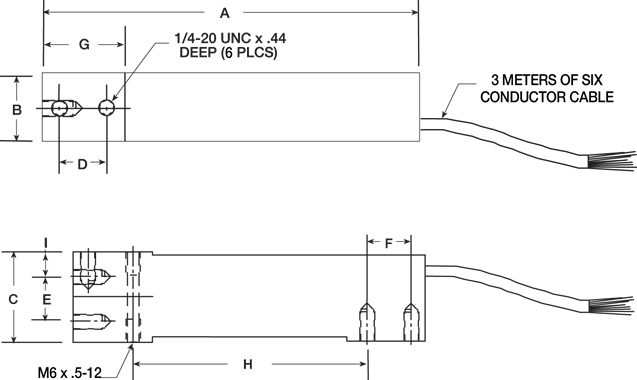

| Rated Capacity | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||
| 5 to 100 | 150.3 | 25.4 | 39.9 | 19.1 | 19.1 | 19.1 | 33.8 | 99.6 | 11.4 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: Cable Diameter: |
Cable Color Code: Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Brown –Sense Yellow Shield Max Platform Size: Warranty: Approvals: |
