RL1010 Aluminum Single Point Load Cell

Off-center loading load cell designed for long-lasting, durable mounting of the weighing platform. Load cells with potted cavities are available for improved performance in damp environments. Potted model capacities range from 7 kg to 90 kg with 10 ft of load cell cable. Unpotted model capacities range from 3 kg and 5 kg with 3 ft of load cell cable. NTEP Certified from 10 kg to 50 kg.\

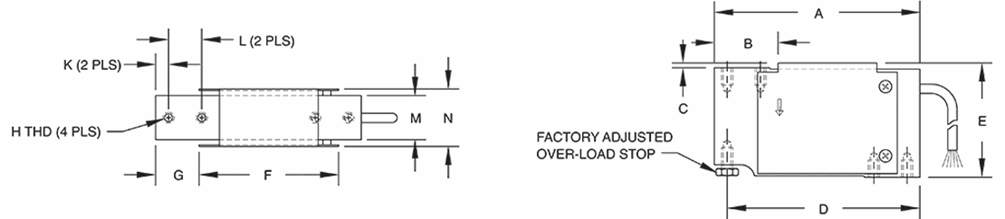

Rated Capacity	A	B	C	D	E	F	G	H	K	L	M	N
kg/mm
3 to 90	118.1	34.00	3.00	110.5	66.0	80.0	25.0	1/4-20 UNC × 13 DP	7.5	19.1	25.4	33.5

Description

Full Scale Output:
2.0 mV/VOutput Resistance:
350 (± 3) ohm, nominal

Input Resistance:
415 (± 15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Potted: IP67
Unpotted: IP65

Safe Overload:
150% at center of loading point, full scaleRated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
0.015 in

Cable Length:
Potted: 10ft
Unpotted: 3 ft

Cable Diameter:
0.200 in PVC jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –SenseMax Platform Size:
15.75 × 15.75 in

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 00-062
