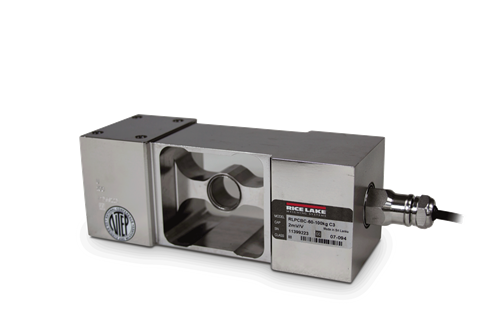

RLPCBC-60 Stainless Steel Single Point Load Cell

Stainless steel, hermetically sealed, single-point load cell that can be used in moist environments. NTEP Certified and comes complete with 10 ft of load cell cable. Capacity ranges are 50 kg to 1,000 kg.

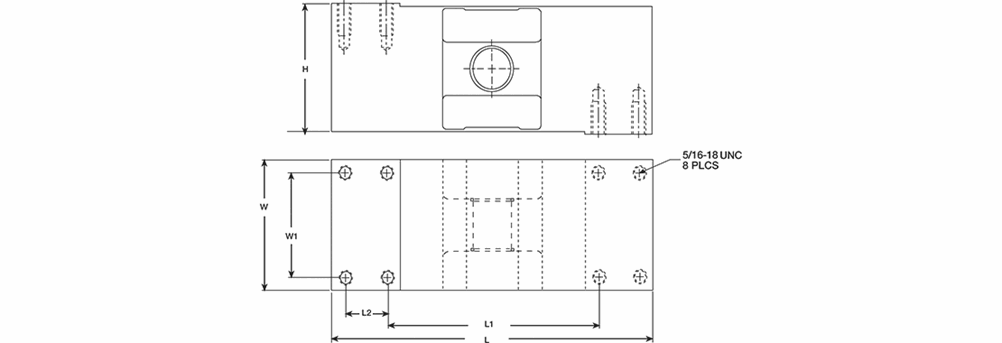

Rated Capacity	L	L1	L2	W	W1	H
kg/mm
50 to 1,000	190.5	107.0	35.0	73.7	50.0	73.7

Description

Full Scale Output:
2 mv/v

Output Resistance:
960 (± 50) ohm

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.020% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Blue +Sense
Brown –Sense
Yellow Shield

Max Platform Size:
24 × 24 in

Warranty:
Two-year limited

Approvals:
FM
NTEP 07-094

Downloads

Load Cell Catalog Page
