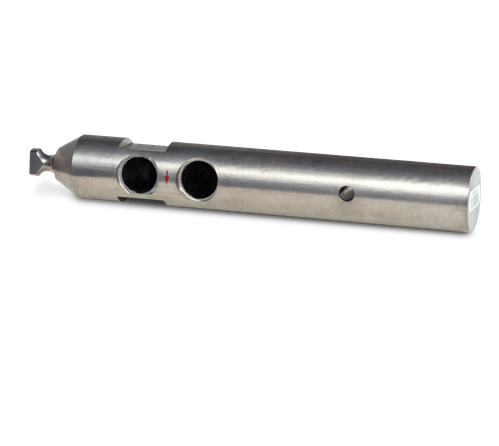

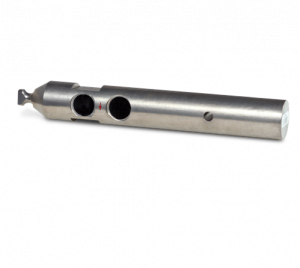

A Legal for Trade link-style replacement for the Avery Weigh-Tronix® Weigh Bar®. Stainless steel construction and IP67 rating for a variety of floor scale, mount assembly and truck scale designs. Standard capacities range from 1,250 lb to 10,000 lb.
| Rated Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| lb/in | |||||
| 1,250 | 11.50 | 7.12 | 8.52 | 1.25 | 3.0 |
| 5,000 | 10.9 | 5.5 | 7.4 | 2.0 | 3.0 |
| 10,000 | 12.6 | 5.9 | 8.0 | 2.5 | 3.0 |
| Full Scale Output: 2.0 ± 0.1%) mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Non-Repeatability: Insulation Resistance: Cable Length: |
Cable Diameter: 0.190 in polyurethane jacket Cable Color Code: Warranty: Approvals: |
