RL1140 Stainless Steel Single Point Load Cell
Rice Lake Weighing Systems

RL1140 Stainless Steel Single Point Load Cell

Categories: , Tags: , , , , ,

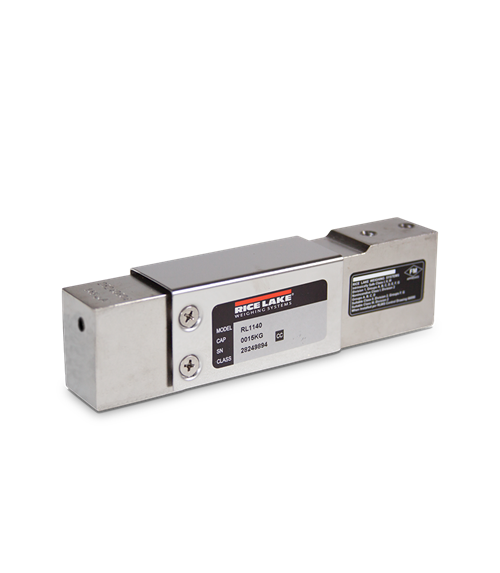

A single-point cell constructed of stainless steel. Ideal for platform scales, packaging and process weighing equipment. Capacities range from 15 kg to 150 kg. Complete with 10 ft of load cell cable.

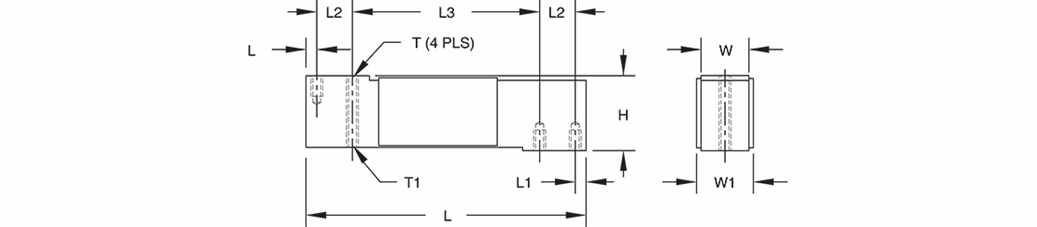

Rated Capacity H L L1 L2 L3 T T1 W W1
kg/mm
15 to 150 40.0 150.0 6.00 19.1 100.0 1/4-20 UNC × 10 DP 1/4-28 UNF ×10 DP 25.4 29.4
Add to Quote

Description

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm, nominal

Input Resistance:
415 (± 15) ohm

Material/Finish:
Stainless steel

Temperature:
Operating range
0 ° F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67

 Safe Overload:
200% at center loading point,
full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.4 mm

Cable Length:
10 ft

 Cable Diameter:
0.200 in PVC jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Max Platform Size:
15.75 × 15.75 in

Warranty:
Two-year limited

Approvals:
cFMus
