AX3040 Alloy Steel Load Cell

Constructed of alloy steel, environmentally sealed and used in the AX3040 axle scale.

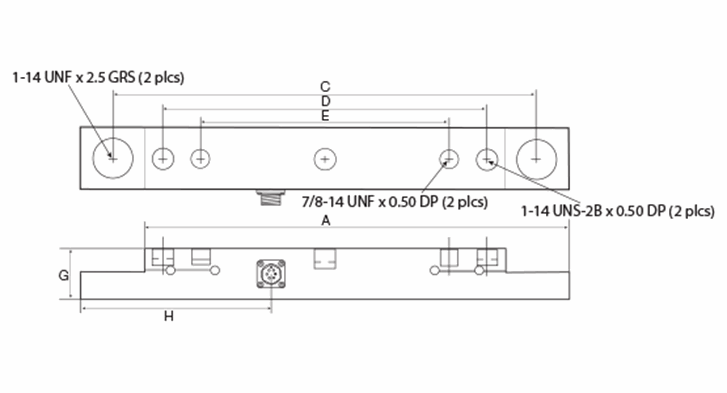

Rated Capacity	A	B	C	D	E	F	G	H
lb/in
20,000	22.60	24.60	19.60	15.00	11.50	2.84	2.38	8.80

Description

Full Scale Output:
0.5 mV/V at 12,500 lbOutput Resistance:
350 ohm (nominal)

Input Resistance:
350 ohm (nominal)

Material/Finish:
Alloy steel

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)Seal Type:
Environmentally sealed, IP66

Manufacturer Model Number:
8300420-10

Rated Excitation:
15 VDC

Non-linearity:
±1.0% full scaleInsulation Resistance:
5,000 megohm at 50 VDC

Warranty:
One-year limited
