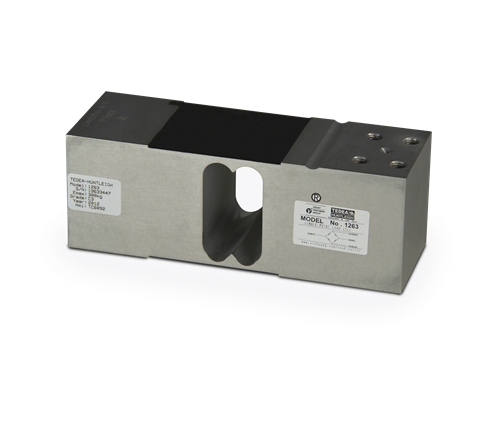

Features rugged construction and offers high immunity to side loads, making it suitable for a wide array of applications like bench scales and process weighing. Its special humidity resistant protective coating helps assure long-term stability over the entire compensated range. Constructed of high quality aluminum and comes standard with 1.5 meters of load cell cable. Available in capacities from 50 kg to 635 kg and is OIML approved.

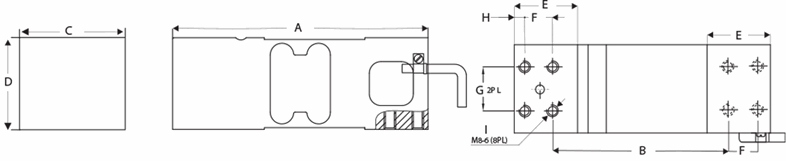

| Rated Capacity | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||
| 50 to 635 kg | 174.0 | 122.0 | 60.0 | 62.5 | 43.0 | 19.0 | 30.0 | 7.0 | M8-6 |
| Full Scale Output: 2 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% of rated output Rated Excitation: Combined Error: Insulation Resistance: Cable Length: Cable Diameter: |
Cable Color Code: Green +Excitation Black –Excitation Red +Signal White –Signal Max Platform Size: Warranty: Approvals: |
