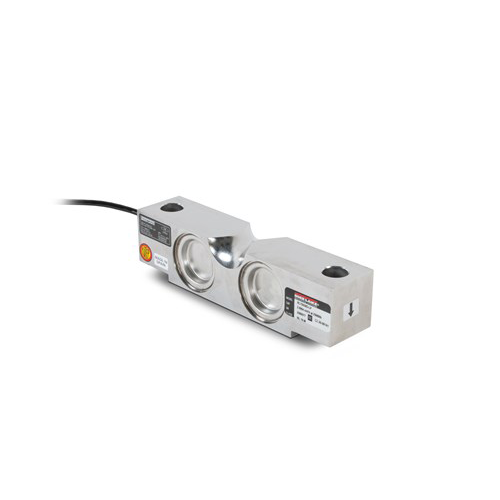

A stainless steel, hermetically sealed load cell with built-in lightning protection. It is available in capacities 10,000 lb to 125,000 lb with an IP68/IP69K rating.

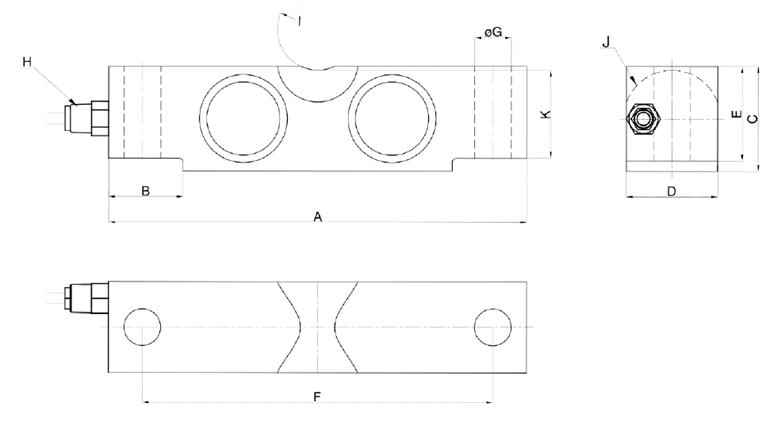

| Rated Capacity | A | B | C | D | E | F | ØG | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||
| 10,000 to 25,000 | 7.75 | 1.38 | 1.94 | 1.69 | 1.70 | 6.50 | 0.68 | 1/4-18 NPT | R19.1 | R22.9 | 1.63 |
| 40,000 | 10.25 | 1.93 | 2.44 | 1.94 | 2.10 | 8.50 | 0.81 | 1/4-18 NPT | R25.4 | R28.5 | 2.00 |
| 50,000 to 75,000 | 10.25 | 1.93 | 2.94 | 2.44 | 2.65 | 8.50 | 1.06 | 1/2-14 NPT | R25.4 | R34.8 | 2.54 |
| 100,000 to 125,000 | 15.25 | 3.13 | 3.86 | 2.90 | 3.43 | 12.75 | 1.62 | 1/2-14 NPT | R38.1 | R45.7 | 3.30 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 10,000 to 25,000 lb: 0.200 in 40,000 to 125,000 lb: 0.305 in Polyurethane jacket Cable Coloring Code: Warranty: Approvals: |
