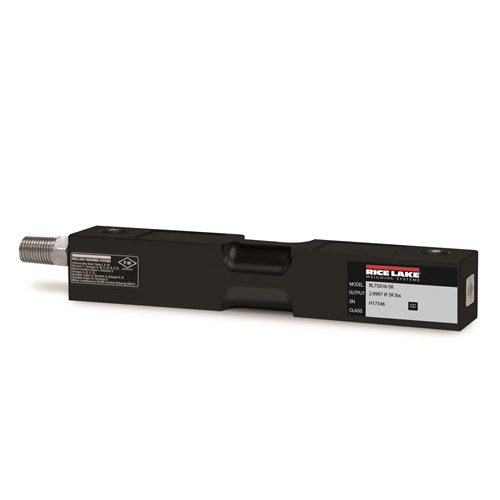

A version of the RL75016 load cell but with a proprietary coating for extra protection in dry chemical applications. Has a painted double-ended beam with center loading designed for tank and hopper applications. Capacities range from 1,000 lb to 75,000 lb. Complete with 25 ft of load cell cable.

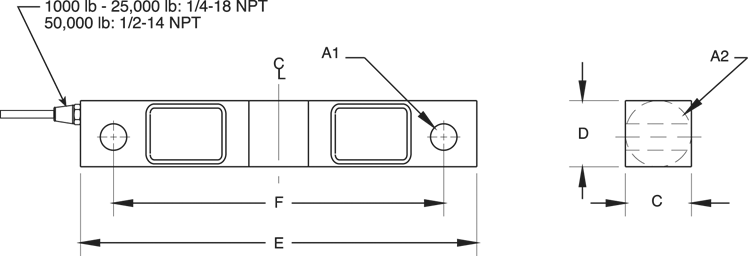

| Rated Capacity | A1 | A2 | C | D | E | F |
|---|---|---|---|---|---|---|
| lb/in | ||||||
| 1,000 to 5,000 | 0.50 | 1.25 | 1.25 | 1.25 | 7.50 | 6.25 |
| 10,000 to 25,000 | 0.81 | 1.99 | 1.44 | 1.94 | 8.75 | 7.50 |
| 50,000 | 1.31 | 3.00 | 2.44 | 2.94 | 13.50 | 11.50 |
| 75,000 | 1.31 | — | 2.44 | 2.94 | 13.50 | 11.50 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: |
Cable Length: 25 ft Cable Color Code: Warranty: Approvals: |
