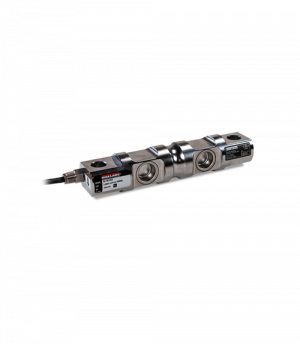

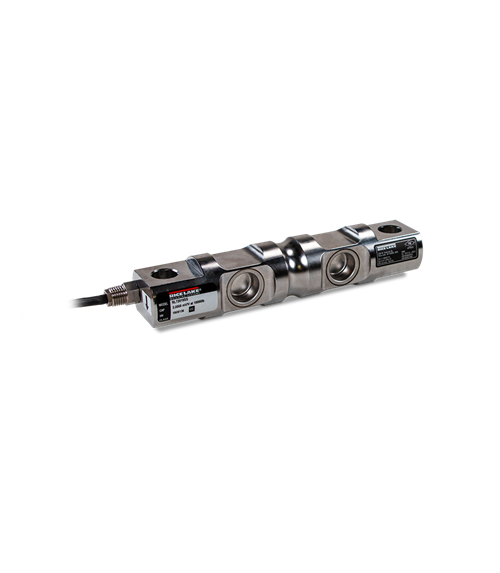

A direct replacement for the RL72010MH load cell. It is stainless steel and has a welded seal. Complete with 25 ft of cable and is available in capacities from 5,000 lb to 60,000 lb.
| Rated Capacity | A | B | C | D | E | F | ØG | H |
|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||
| 5,000 to 20,000 | 8.12 | 1.14 | 6.88 | 1.44 | 1.71 | 1.71 | 1.00 | 1/4-18 NPT |
| 30,000 to 60,000 | 10.25 | 2.38 | 8.50 | 1.88 | 3.03 | 3.03 | 2.00 | 1/2-14 NPT |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Welded-seal, IP68 Safe Overload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: |
Cable Length: 25 ft Cable Color Code: Warranty: Approvals: |
