Ideally suited for suspended applications or mechanical scale conversions. A stainless steel design that provides additional protection in dry, corrosive environments.

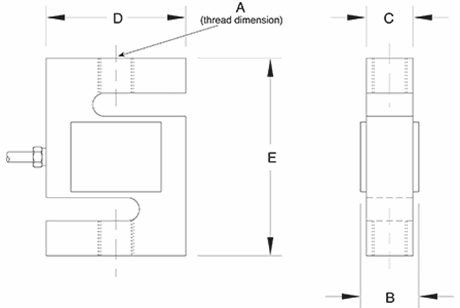

| Rated Capacity | A | B | C | D | E |
|---|---|---|---|---|---|
| lb/in | |||||
| 50 to 300 | 1/4-28 UNF | 0.65 | 0.46 | 2.00 | 2.40 |
| 500 to 1,000 | 1/2-20 UNF | 0.90 | 0.71 | 2.00 | 2.40 |
| 1,500 to 2,500 | 1/2-20 UNF | 1.15 | 0.96 | 2.00 | 2.40 |
| 3,000 | 1/2-20 UNF | 1.15 | 0.96 | 3.00 | 3.90 |
| 5,000 | 3/4-16 UNF | 1.15 | 0.96 | 3.00 | 3.90 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP67 Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 0.190 in polyurethane jacket Cable Color Code: Warranty: Approvals: |
