NCR-80 Radar Level Sensor

Fast and accurate inventory

Dust defying 80 GHz radar level sensors keep you up to speed with silo inventory.

Update rate of less than 1 second and accuracy within 0.2”
Stainless steel flange, 1-1/2” NPT, or plastic antenna models
Aluminum, plastic, or stainless-steel housing options
Swivel mounts for precise aiming, flat and angled roof mounting flanges
Mounting straps for suspending over conveyors, piles, or bins
Two-wire and four-wire 4-20 mA and Modbus outputs
Works in the harshest environments; optional CSA/FM approvals

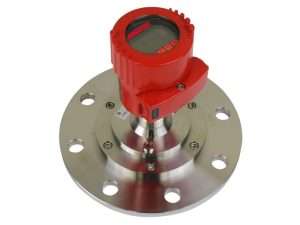

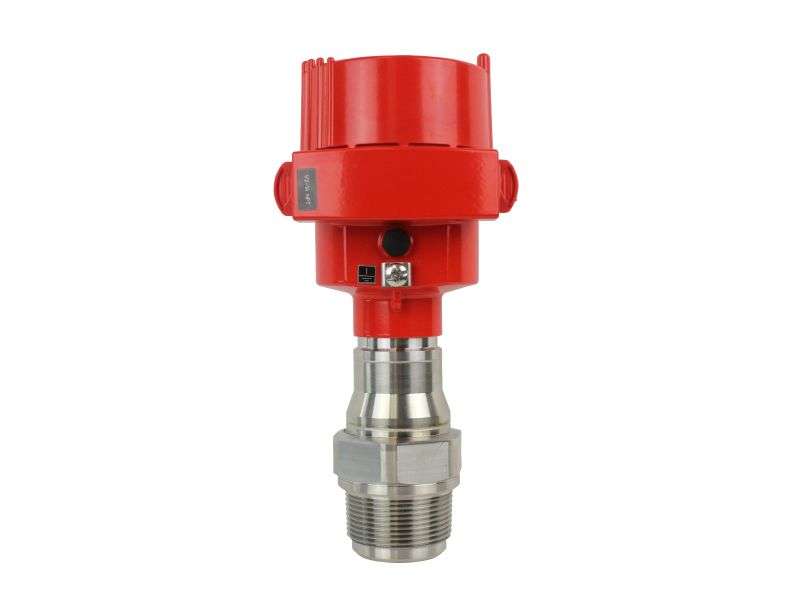

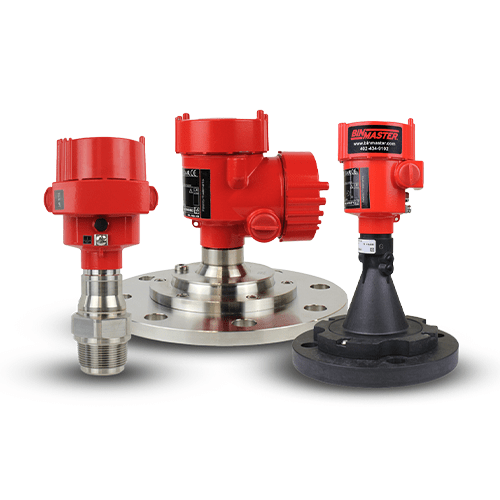

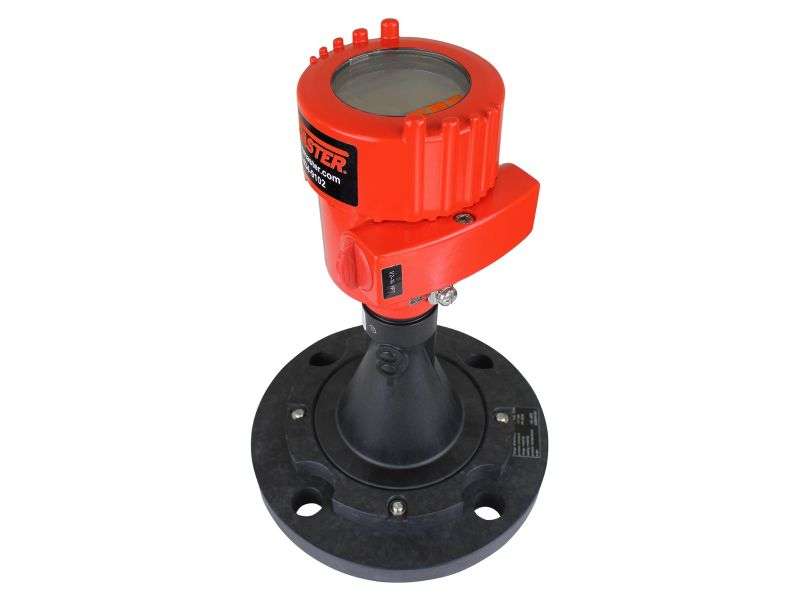

Threaded, Metal Jacketed, and Plastic Horn Antenna versions available

Combine these 80 GHz sensors with wireless systems, gateways, and BinCloud® software for a custom inventory management system.

Description

NCR-80: 80 GHz Non-Contact Radar Excels in Solids

A continuous level sensor using focused narrow beam technology to cut through dust measuring bulk solids at distances up to 394’.

Rapidly updated inventory viewed on BinCloud® SaaS cloud software, Binventory® LAN-based software, or a PLC or displayed locally on a digital panel meter and display console.

Reliable level measurement. 80 GHz precision.

Measuring distance up to 394 feet (80 feet for T model)
4° beam angle for precise targeting (8° for T model)
Reliable accuracy within 0.2”
High temperatures up to 392°F
BinDisc with Bluetooth setup option

Countless configurations to customize your radar:

Aluminum, plastic, and stainless-steel housings
Two-wire 4-20 mA, four-wire 4-20 mA, and Modbus output options
Ordinary location and hazardous approvals
Flat and angled mounting plates or a swivel mount
High temp seals and specialized seals for foodstuffs or pharma

Plus, way to reduce and simplify wiring:

BinCloud Gateway: streams level data in and out of a network

LoRa Transceiver: long-range data communication up to 1-mile line-of-sight

Hart Consolidator Module: connect up to 15 sensors using the HART protocol

So many options to simplify solids measurement with NCR-80 radar!
