Description

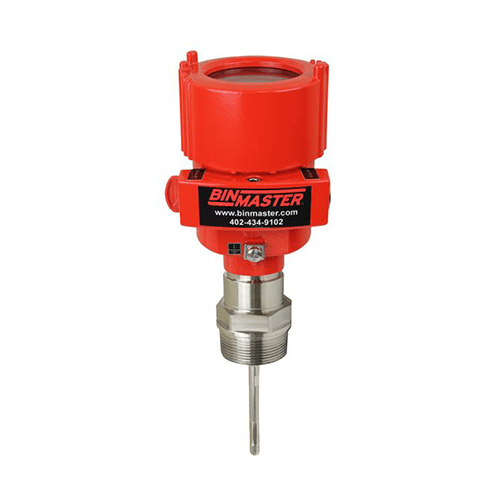

Level sensors using time domain reflectometry for continuous level monitoring to measure the level, distance, and volume of material.
Need to measure accurately in dusty, humid, or noisy conditions?
Do you have silos where pressure or material bulk density changes?
BinMaster’s TDR sensors with simple Bluetooth setup deliver high resolution signal processing in all conditions.
Applications:
- Steam
- Vapor
- Foam
- Condensation
- Liquids prone to residual buildup
It is designed to significantly reduce or eliminate the upper dead zone for accurate level measurement to the top of the vessel.
The GWR-3000 for solids excels in:
- Storage tanks up to 75 feet tall
- Tank level and layered liquid interface level
- Standpipe level measurement
- Separator tanks in the chemical and paper industries
Specifications:
- Accuracy: ± 0.08” (2mm)
- Process Temperature: -76°F to 392°F (-60° to 200°C)
- Process Pressure: -14.5 to 58Ø psig-(1 to +40 bar)
- Mounting: 1-1/2” or 2” NPT threaded, 2” or 3” flange
- Housing Material: Plastic, aluminum, or stainless steel
- Enclosure Rating: IP66/IP67/IP68 dependent on housing
- Approvals: CSA / FM Class II, Div 2, Groups E, F, G; Other approvals available
- Output: Two-wire 4 – 20 mA/HART®, Four-wire 4 – 20 mA/HART®, Modbus RTU
- TDR sensors with the same simple Bluetooth setup as our radars!
