Description
Level sensors using time domain reflectometry for continuous level monitoring to measure the level, distance, and volume of material.
Need to measure accurately in dusty, humid, or noisy conditions?
Do you have silos where pressure or material bulk density changes?
BinMaster’s TDR sensors with simple Bluetooth setup deliver high resolution signal processing in all conditions.
Applications:
For granules, powders, and bulk solid with dielectric constant down to 1.3

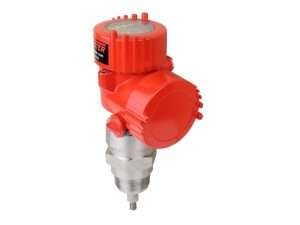

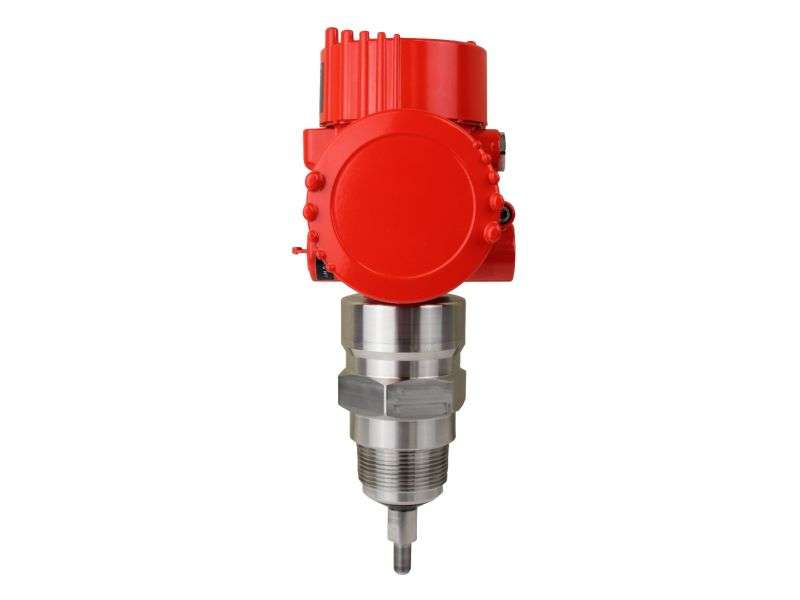

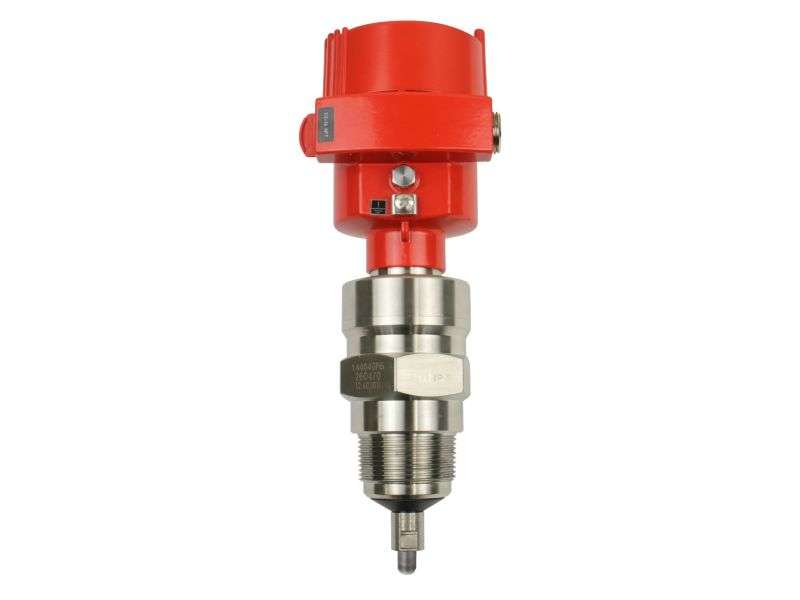

The GWR-2000 for solids excels in:

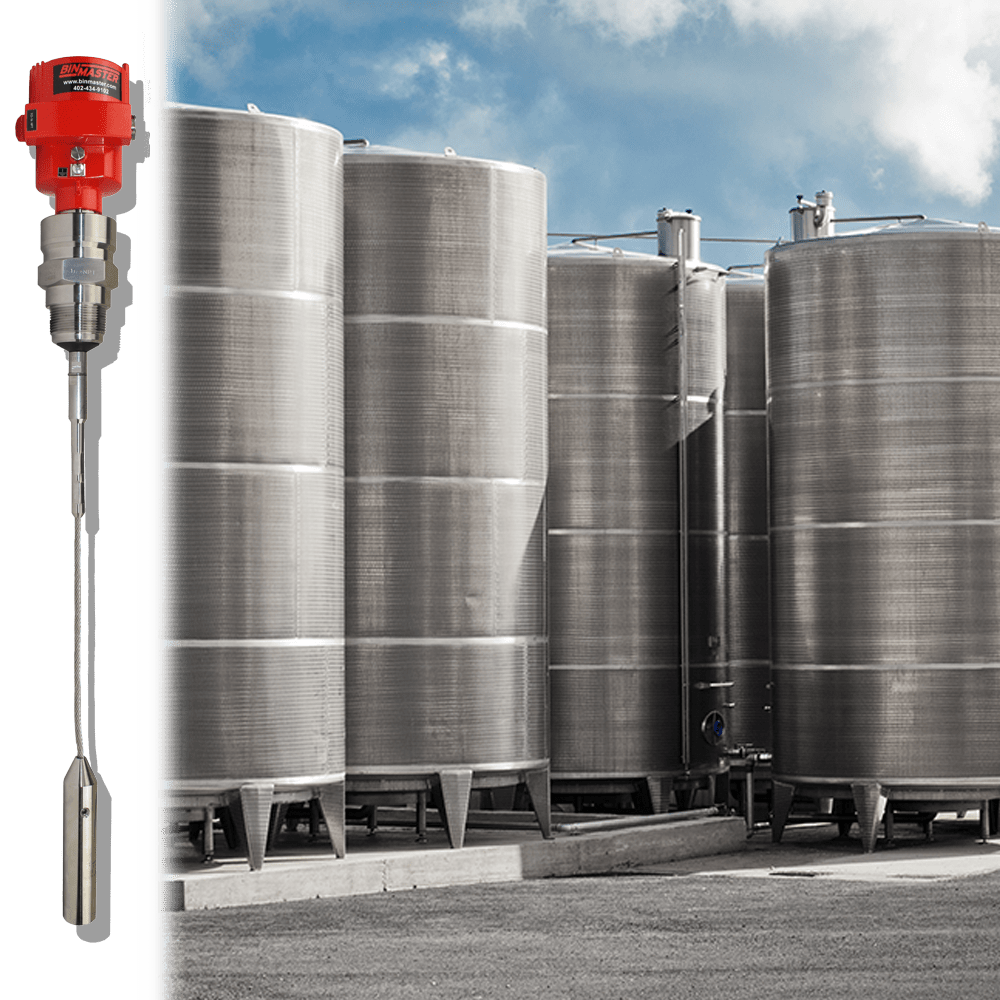

- Storage or processing bins or silos up to 100’ tall
- Vessels constructed of plastic, cement, or steel
- Powders, granules, pellets, and other bulk solids
- High dust, air movement, or excessive noise
Specifications:
- Accuracy: ± 0.08” (2mm)
- Process Temperature: -76°F to 392°F (-60° to 200°C)
- Process Pressure: -14.5 to 58Ø psig-(1 to +40 bar)
- Mounting: 1-1/2” or 2” NPT threaded, 2” or 3” flange
- Housing Material: Plastic, aluminum, or stainless steel
- Enclosure Rating: IP66/IP67/IP68 dependent on housing
- Approvals: CSA / FM Class II, Div 2, Groups E, F, G; Other approvals available
- Output: Two-wire 4 – 20 mA/HART®, Four-wire 4 – 20 mA/HART®, Modbus RTU
- TDR sensors with the same simple Bluetooth setup as our radars!
