Clamp x Weld 45° Elbow

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.

Description

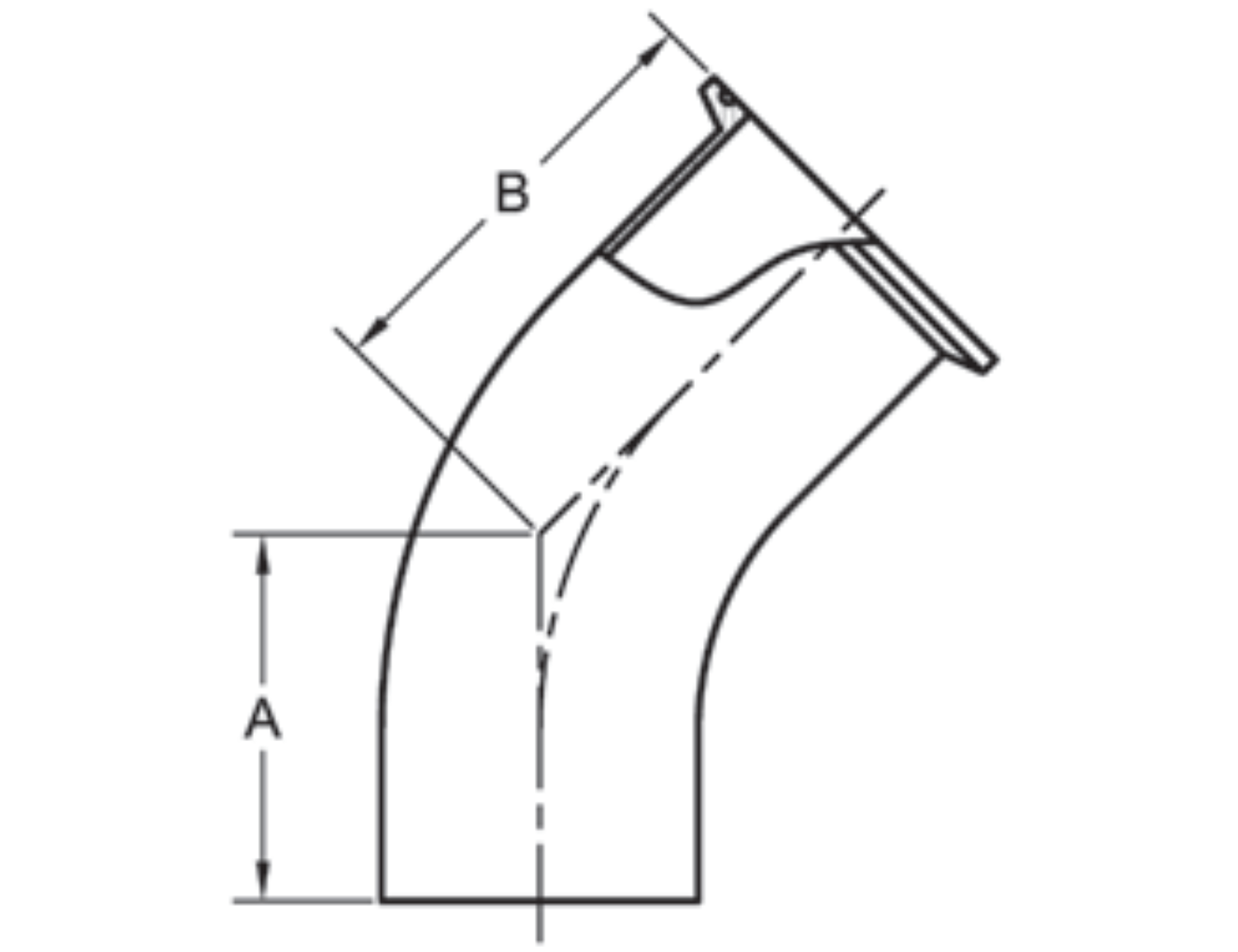

Clamp x Weld 45° Elbow Specifications

3-A Certified

Size (Tube OD)	Part #	Part #	Dimensions	Dimensions	Dimensions
	304L		A	B	Wall
1/2"	-	L2KM6-050	2.25	2.75	0.065
3/4"	-	L2KM6-075	2.25	2.75	0.065
1"	L2KM4-100	L2KM6-100	1.18	1.688	0.065
1-1/2"	L2KM4-150	L2KM6-150	1.625	2.125	0.065
2"	L2KM4-200	L2KM6-200	2.312	2.812	0.065
2-1/2"	L2KM4-250	L2KM6-250	3	3.5	0.065
3"	L2KM4-300	L2KM6-300	3.688	4.188	0.065
4"	L2KM4-400	L2KM6-400	4.812	5.437	0.083
6"	L2KM4-600	L2KM6-600	6.75	7.625	0.109
