Polished True Wye Fitting

Categories: Accessories, Fittings, Pipe Fittings Tags: ball valves, butterfly valves, check valves, fittings, food and bevergage, pharmaceutical, piping, sanitary, tubing

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.

Add to Quote

Description

Description

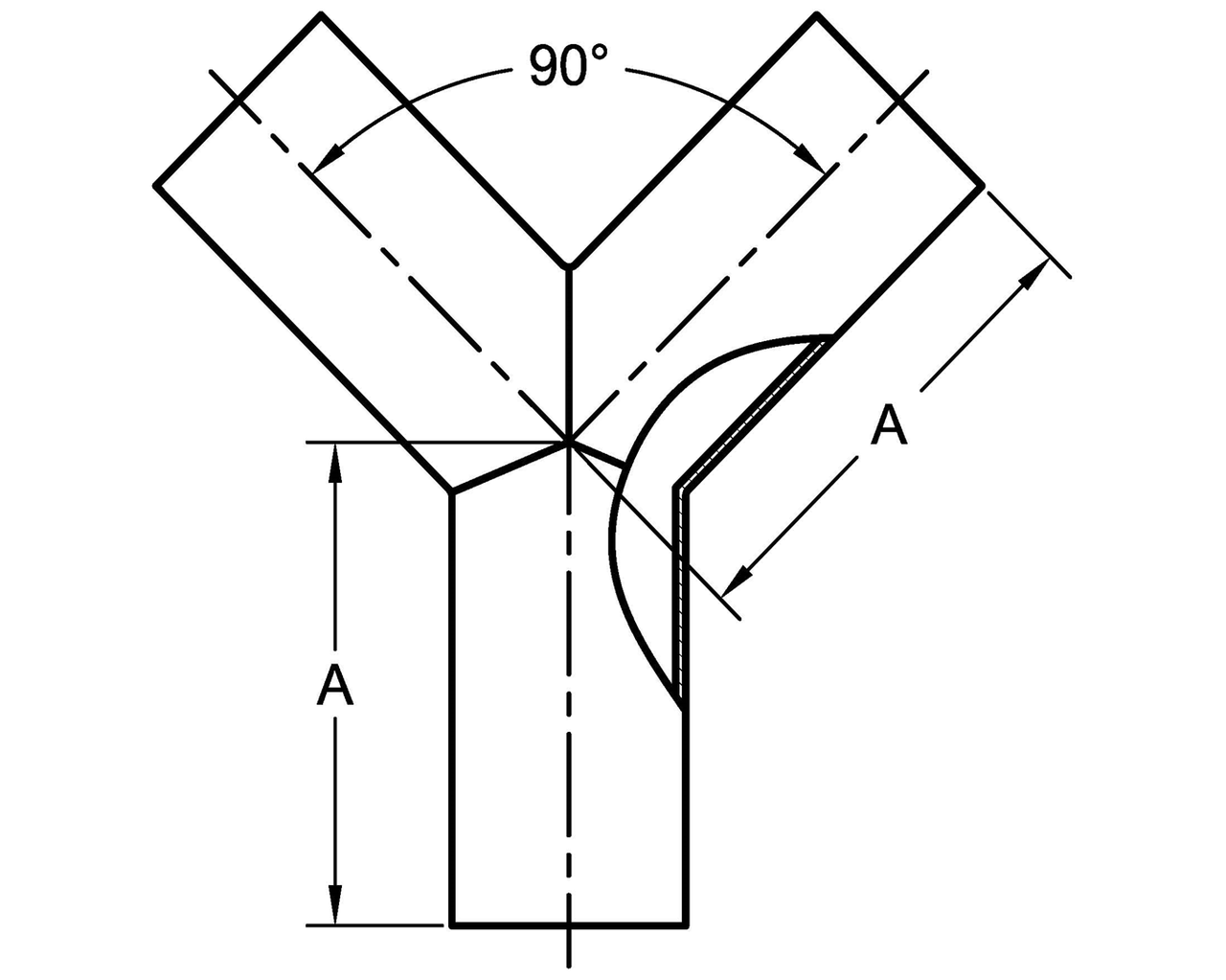

Polished True Wye Fitting Specifications

3-A Certified

Size (Tube OD)	Part #	Part #	Dimensions	Dimensions	Dimensions
	304L	316L	A	B	Wall
1"	28W4P-100	28W6P-100	2	2.438	0.065
1-1/2"	28W4P-150	28W6P-150	2	2.438	0.065
2"	28W4P-200	28W6P-200	2.625	3.25	0.065
2-1/2"	28W4P-250	28W6P-250	3.37	4.125	0.065
3"	28W4P-300	28W6P-300	4	4.875	0.065
4"	28W4P-400	28W6P-400	5.375	5.375	0.083
6"	28W4P-600	28W6P-600	8	8	0.109
