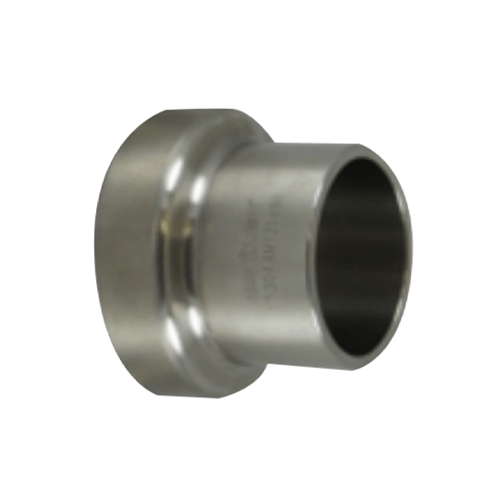

Tube OD Weld x Schedule 10S Weld Adapters

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.

Description

Tube OD Weld x Schedule 10S Weld Adapters Specifications

Size (OD x NPT)	Part Number		Dimensions
Size (OD x NPT)	304L	316L	A	Tube Wall	Pipe Wall
1/2 “	19WX4-050	19WX6-050	1.000	0.065	0.109
3/4″	19WX4-075	19WX6-075	1.000	0.065	0.109
1 “	19WX4-100	19WX6-100	1.000	0.065	0.109
1-1/2″	19WX4-150	19WX6-150	0.750	0.065	0.109
2 “	19WX4-200	19WX6-200	0.750	0.065	0.109
2-1/2 “	19WX4-250	19WX6-250	1.000	0.065	0.120
3 “	19WX4-300	19WX6-300	1.000	0.065	0.120
4 “	19WX4-400	19WX6-400	1.000	0.084	0.120
