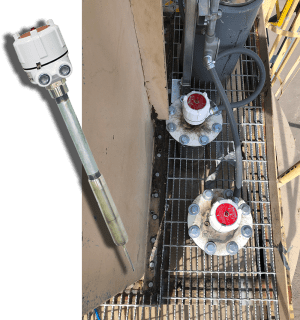

VR-41-X Vibrating Probe with Pipe Extension

Vibrating Probes with Rigid and Flexible Extensions

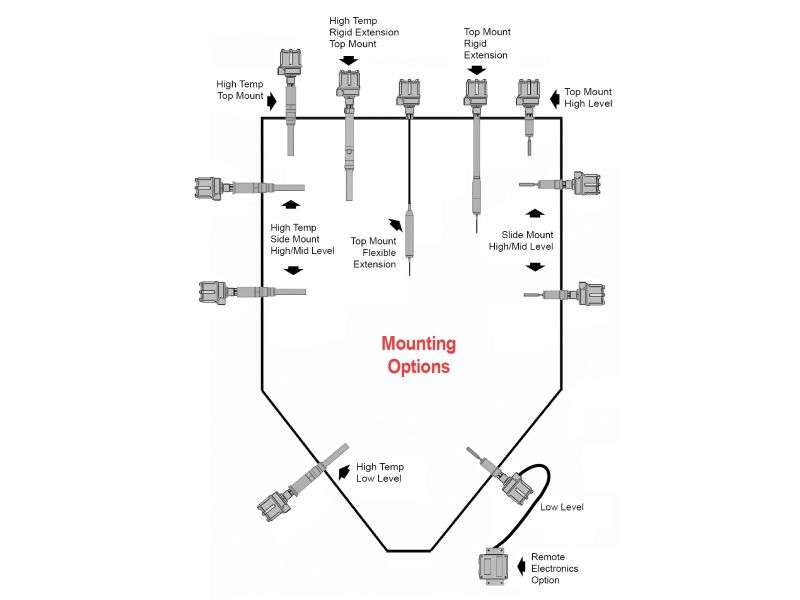

Top mounted, high-level detection

Extended vibrating rods are ideal where you want to leave a certain amount of headspace in the silo. They detect high levels to prevent overfilling. Wire them to an alert such as a light, horn, alarm panel, or PLC to shut a process off or on.

The VR-41 and VR-51 both feature a unique sword-shaped vibrating probe that resists buildup and false alarms. They don’t require any calibration and are wear and maintenance free.

About extended vibrating probes:

• Suitable for high or low-level and plugged chute detection
• Use in material densities of 1.25 lb./ cu. ft. or greater
• Detect extremely light, fluffy materials with low dielectric constants
• Three sensitivity adjustments and switch selectable high/lo failsafe
• Optional hazardous location approvals to CSA Class II

Made to order in custom lengths!

VR-41 Rigid Extensions: 13 inches up to 13 feet

VR-51 Flexible Extensions: 19 inches up to 19 feet

Try an extended vibrating probe in carbon black, plastics, fly ash, feed, seed, grain, food, chemicals, and other light and low dielectric materials!
