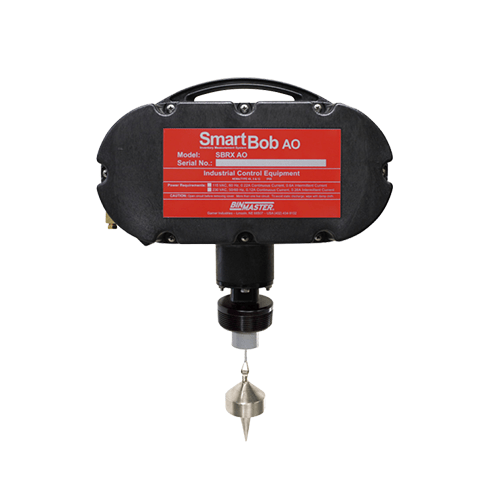

SmartBob Level Sensor AO

With a built-in 4-20 mA output and integrated keypad, the SmartBob AO level sensor automatically transmits data to a PLC each time it takes a measurement.

Applications:

Inventory Management
Remote Monitoring
Vendor Managed Inventory
Storage Dome Monitoring
Sediment Levels

Options:

Software: Level data on an BinCloud web application or the Binventory LAN-based software
Consoles: C-100 push-button console is a centralized local display for all your bins
Cable: Nylon, Teflon jacketed, bare stainless steel, and FDA-approved nylon.
Probes: Spikes, spheres, inverted cones, Teflon coated, digestible bottles, and glass
Mounting plates: 0° for flat roofs; 5°, 10°, 15°, 20°, 24°, 30°, 35°, and 40° angled for sloped roofs
Heaters: Optional protection keeps the gearbox warm in cold climates
Pipe extensions: CPVC and stainless steel in lengths from 6 to 60 inches

Description

SmartBob®: Automates the tape measure

The SmartBob remote is the core of a complete level measurement system using cable-based sensors to reliably measure levels in bins up to 150 feet tall.

Tired of climbing bins? Want to automate and keep it simple?

Features:

Submersed solids: The SS is designed for brine tanks and measuring the level of solid materials below a liquid surface.
Analog Output: The AO has a built-in 4-20 mA output and integrated keypad that automatically transmits data to a PLC with every measurement.
MultiBob: Mount from 2 to 32 remotes on a single vessel and Binventory software will average the measurement data from all the sensors.
High Temperatures: The HT remote is designed with a standpipe that allows the remote to be used at process temperatures between 240°F and 500°F.

Benefits:

Works in solids, slurries, brine, or liquids
Vessel heights up to 150 feet
Works in dust, immune to noise
Built-in cable cleaning system
No field calibration required
Class II, Groups E, F & G certifications
