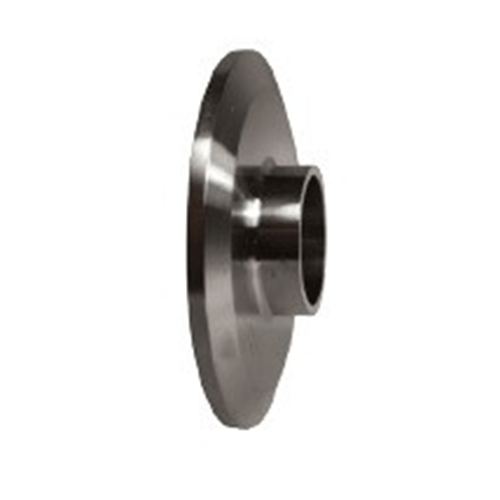

Short Reducing Ferrules

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection. Clamp connections can be secured without the use of tools when using Sanitube wing nut style clamps.

Description

Short Reducing Ferrules Specifications

Size	Part Number		Dimensions
(Tube OD)	304	316L	A	B	C
3/4″ x 1/2″	—	31WMP6-075-050	0.5	0.37	0.5
1″ x 1/2″	—	31WMP6-100-050	0.5	0.37	0.5
1″ x 3/4″	—	31WMP6-100-075	0.5	0.62	0.75
1-1/2″ x 1/2″	—	31WMP6-150-050	0.5	0.37	0.5
1-1/2″ x 3/4″	—	31WMP6-150-075	0.5	0.62	0.75
1-1/2″ x 1″	—	31WMP6-150-100	0.5	0.87	1
2″ x 1″	—	31WMP6-200-100	0.5	0.87	1
2″ x 1-1/2″	—	31WMP6-200-150	0.5	1.37	1.5
2-1/2″ x 2″	—	31WMP6-250-200	0.5	1.87	2
3″ x 2″	—	31WMP6-300-200	0.5	1.87	2
4″ x 3″	—	31WMP6-400-300	0.63	2.87	3
