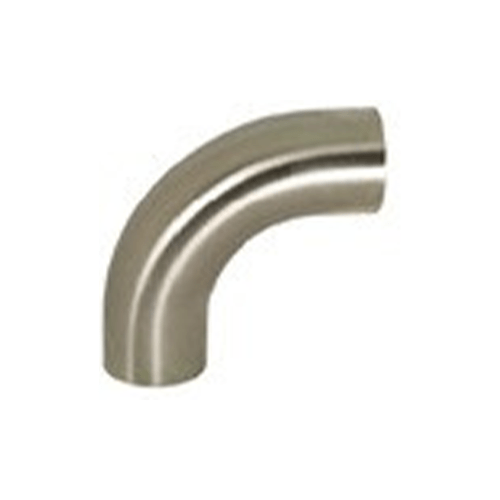

Polished 90° Elbow with Tangents

Categories: , , Tags: , , , , , , , ,

The Polished 90° Elbow with Tangents is manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications. Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.

  • Size (Tube OD): 1/2″ to 8″
  • 3-A Certified
  • Alloy:
    • T304
    • T316L
Add to Quote

Description

Polished 90° Elbow with Tangents Specifications

  • 3-A Certified

Size
(Tube OD)		 Part Number Dimensions
304 316L A R Wall
1/2″ — L2S6P-050 3.000 1.125 0.065
3/4″ — L2S6P-075 3.000 1.125 0.065
1   “ L2S4P-100 L2S6P-100 2.062 1.500 0.065
1-1/2″ L2S4P-150 L2S6P-150 2.937 2.250 0.065
2   “ L2S4P-200 L2S6P-200 4.062 3.000 0.065
2-1/2″ L2S4P-250 L2S6P-250 5.187 3.750 0.065
3   “ L2S4P-300 L2S6P-300 6.312 4.500 0.065
4   “ L2S4P-400 L2S6P-400 8.312 6.000 0.083
6   “ L2S4P-600 L2S6P-600 11.250 9.000 0.109
