Description

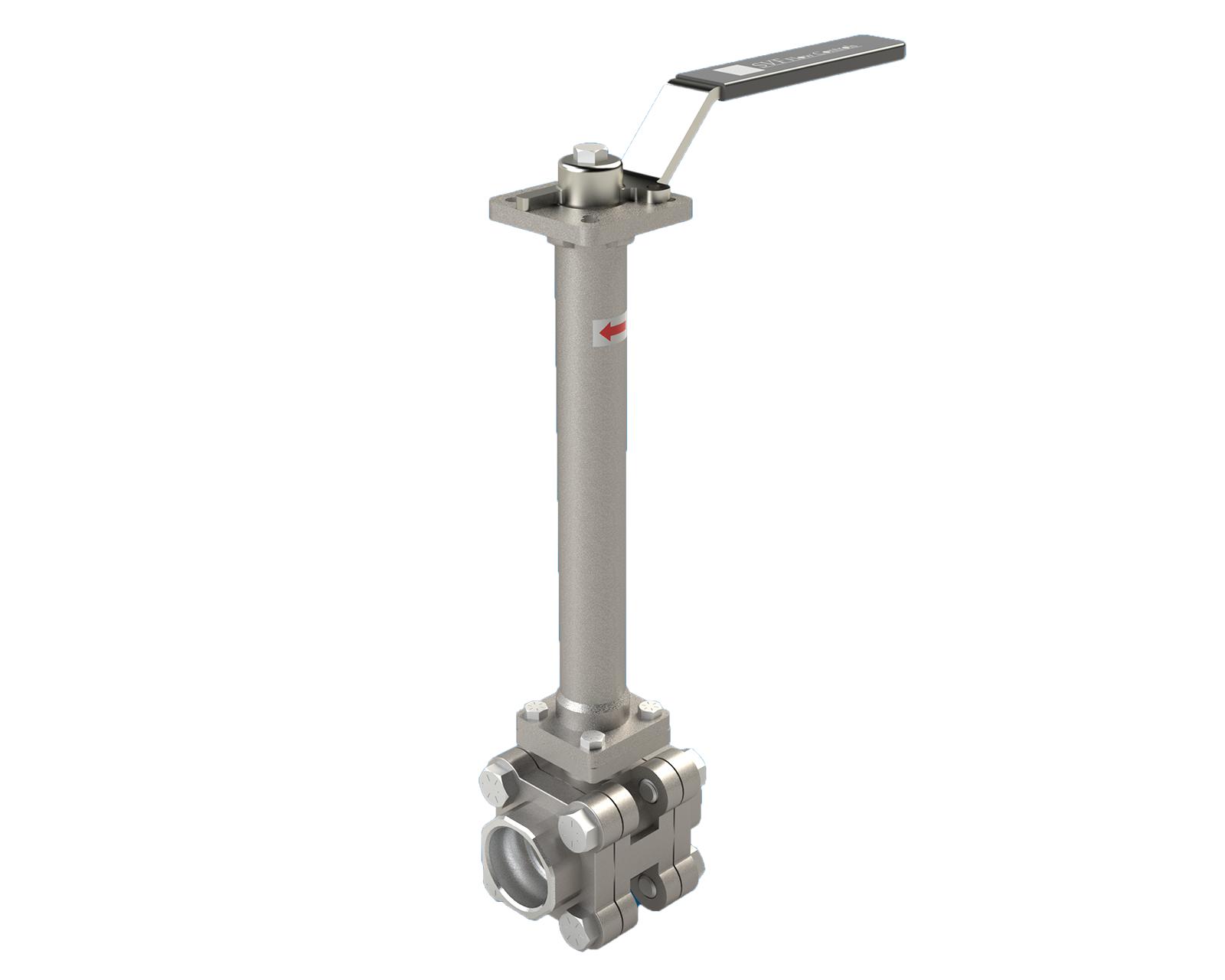

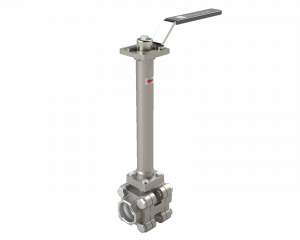

- Three-Piece Cryogenic Ball Valve, Standard Port, Sizes 1/2” ~ 2” (1/2″ is Full Port)
- Pressure rated to 2000 WOG
- Built-In ISO 5211 Direct Mounting Pad for easy automation
- Anti-Static stem device
- Standard seat material is PCTFE
- Blowout proof stem adds safety & reliability
- Meets testing requirements of BS 6364 standard
- Screwed Ends (SE) standard
- Optional Socket Weld Ends (SW) and 150# Raised Flange Ends (RF1) available
Type/Application
- Cryogenic Valves
- ISO 5211
- Process-Quality
- Specialty
- Standard Port Valves
- Three-Piece Valves
