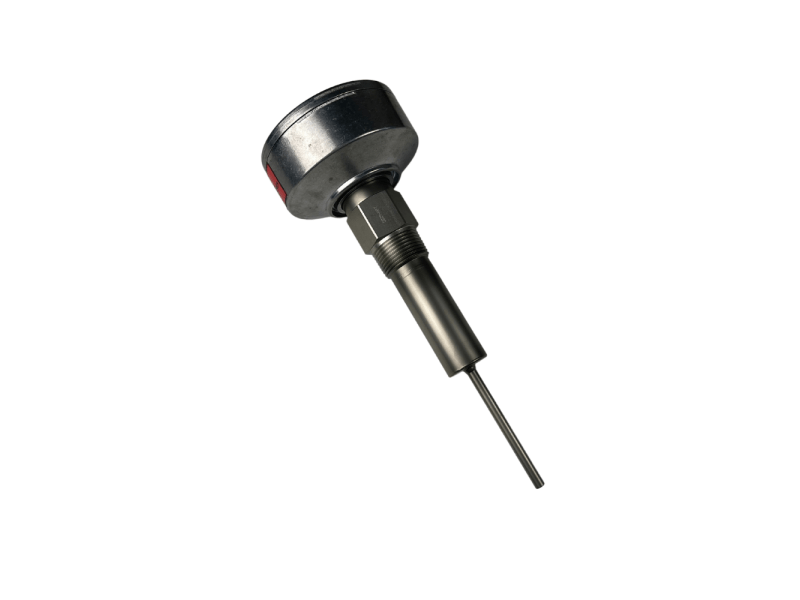

Compact vibrating probes for small vessels or tight spaces
Insertion length of just 6”. Two mounting options:
CVR-600: 1” NPT
CVR-625: 1.25” NPT
Point level detection in plastics, food, seed, chemicals, and many other powder or bulk solid materials.
Why you will like these vibrating level sensors:
No false alarms. Time delay feature for 1 second from stop of vibration and 2 to 5 seconds from start of vibration prevents false alerts.
Mounting versatility. CVR-600 uses a 1” mounting connection, while the CVR-625 is mounted through a 1.25” mounting socket.
Low dielectric materials. Work in very light materials with a bulk density as low as 2 pounds per cubic foot as well as heavier or clingy materials.
Level alerts. Wire to a light, horn, point level alarm, or control panel for high or low-level notification to help with replenishment and process control.
No calibration needed. Just set to one of three sensitivity settings for low, medium, and high levels of sensitivity based upon the material being measured.
CVR-600-HTL – Compact vibrating rod level sensor with 1” NPT and 6” insertion length, 20 to 250 VAC/DC, high temp probe assembly
for temperatures up to 300ºF (150ºC) with 2” temperature insulating lag tube
