Clamp x 150# FF Flange Adapter

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection. Clamp connections can be secured without the use of tools when using Sanitube wing nut style clamps.

Description

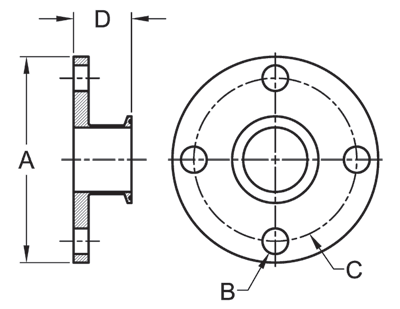

Clamp x 150# FF Flange Adapter Specifications

Size (Tube OD)	Part Number		Dimensions				Holes
Size (Tube OD)	304	316L	A	B	C	D	Count
1 “	FLGTC4-100	FLGTC6-100	4.250	0.625	3.125	1.625	4
1-1/2″	FLGTC4-150	FLGTC6-150	5.000	0.625	3.875	1.625	4
2 “	FLGCT4-200	FLGTC6-200	6.000	0.750	4.750	1.750	4
2-1/2″	FLGTC4-250	FLGTC6-250	7.000	0.750	5.500	1.750	4
3 “	FLGTC4-300	FLGTC6-300	7.500	0.750	6.000	1.750	4
4 “	FLGTC4-400	FLGTC6-400	9.000	0.750	7.500	1.750	8
5 “	FLGTC4-500	FLGTC6-500	10.000	0.750	8.500	1.750	8
6 “	FLGTC4-600	FLGTC6-600	11.000	0.875	9.500	2.188	8
8 “	FLGTC4-800	FLGTC6-800	13.500	0.875	8.031	2.188	8

Notes:

– 150# Bolting Pattern
– Reducing Sizes available upon request
