Clamp True Wye

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection. Clamp connections can be secured without the use of tools when using Sanitube wing nut style clamps.

  • 3-A Certified

Description

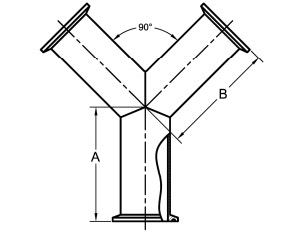

Clamp True Wye Specifications

Size (Tube OD) Part Number Dimensions
304L 316L A B
1   “ 28BMP4-100 28BMP6-100 2.500 2.938
1-1/2″ 28BMP4-150 28BMP6-150 2.500 2.938
2   “ 28BPM4-200 28BMP6-200 3.125 3.750
2-1/2″ 28BMP4-250 28BMP6-250 3.870 4.625
3   “ 28BMP4-300 28BMP6-300 4.500 5.375
4   “ 28BMP4-400 28BMP6-400 6.000 6.000
6   “ 28BMP4-600 28BMP6-600 8.875 8.875
