| Valve Size | Clamp and Cap Size | Part Number | Dimensions | Ball Diameter | ||||||

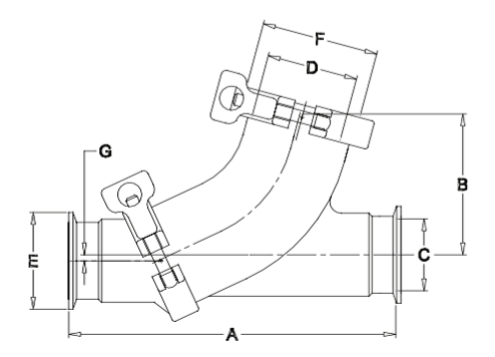

| A | B | C | D | E | F | G | ||||
| 1-1/2″ | 2 “ | 45BY6-150 | 7.500 | 3.300 | 1.360 | 1.870 | 1.980 | 2.510 | 0.160 | 1.6 |
| 2 “ | 2-1/2″ | 45BY6-200 | 8.500 | 3.900 | 1.860 | 2.330 | 2.510 | 3.040 | 0.160 | 2.1 |
| 2-1/2″ | 3 “ | 45BY6-250 | 10.000 | 4.500 | 2.370 | 2.870 | 3.040 | 3.570 | 0.160 | 2.7 |
| 3 “ | 4 “ | 45BY6-300 | 11.500 | 5.300 | 2.870 | 3.830 | 3.570 | 4.680 | 0.160 | 3.6 |
Metal product contact surfaces are T316 Stainless Steel.
Two-piece construction.
Field serviceable.
PTFE ball.
Replacement seat available.
Operating temperature range: 15°F to 200°F.
Maximum operating pressure: 150 PSI.
