Description
Wingnut I-Line Clamp Specifications
- All clamps are T304 Stainless Steel
- Pressure ratings assume wing nut tightened to 25 in/lb of torque
Size (Tube OD) | Part Number | Service Pressure Rating at 70°F | Service Pressure Rating at 250°F | Dimensions | ||

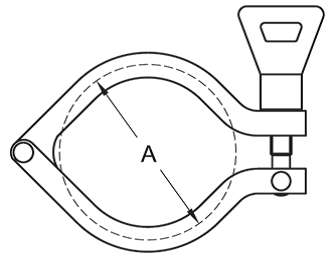

A | ||||||
1 “ | – | 1-1/2″ | 13IS-100-150 | 700 | 250 | 2.122 |
2 “ | 13IS-200 | 450 | 250 | 2.654 | ||
2-1/2″ | 13IS-250 | 450 | 200 | 3.185 | ||
3 “ | 13IS-300 | 350 | 150 | 3.717 | ||
4 “ | 13IS-400 | 200 | 125 | 4.820 |
