Available Calibration Modes:
Gauge, absolute, or gauge and absolute switch-selectableOverall Accuracy:
±0.05% F.S. maximum each range. Accuracy statement includes all effects of linearity, hysteresis, repeatability and ambient temperature.
Temperature Range:
Operating: 40°F to 140°F (4°C to 60°C)
Storage: 0°F to 185°F (-17°C to 85°C)
Relative humidity: 95%, non-condensing
Pressure Media:
Any media compatible with 17-4PH stainless steel
Pressure Sensor Type:
Bonded, metal foil strain gauge or equal
Pressure Connection:
Pressure fitting; 7/16-20UNF-2A: 37° flare; AN-4 20,000 psi unit and 30,000 psi unit; Autoclave AE F250-C
Overpressure Capability:
750% on low range
300% on mid range
150% on high range
Numerical Pressure Display:
Digital type: High intensity, red LED, 0.43 in. high
Active digits: Five full decades
Polarity indication: “—” sign |
Pressure to Digital Conversion:
Conversion rate: Data updated at the rate of 12 times per second, nominal
Display resolution: Nominally 0.02% of F.S. for each pressure rangeInput Voltage:
115 or 230 VAC, ±10%, 50/60 Hz voltage selected via transformer taps
Power Consumption:
8 watts, typical
Line Filter:
Line to line and line to neutral
Mounting Styles:
Table top with rubber feet or panel mounted with adapter kit
Construction:
Single piece outer case with slide out drawer
Case Material:
16 gauge, mild steel with textured finish, baked epoxy enamel paint
Multi-Conversion:
10 units can be stepped through at the touch of a button. psi, kPa, mmHg, BAR, mBAR, inHG, cmH2O, Kg/cm2, inH2O, and % F.S. are included. Replaces analog pressure display |
Weight:

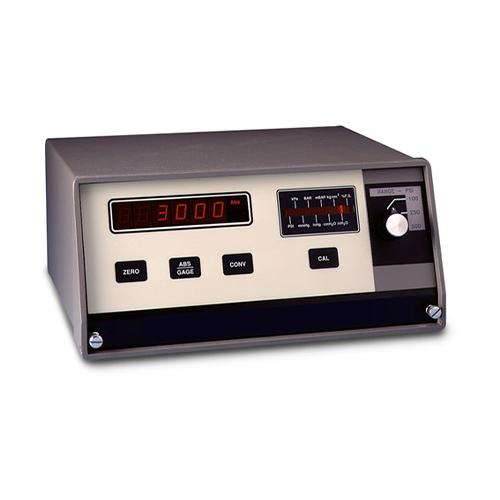

UPS3000: approximately 13 lb (5.8 kg)Peak Hold:
Last highest pressure reading stored in memory and recalled at the touch of a button. Calibrates burst discs and relief valves
Freeze Mode:
External switch contact, change of state, freezes display reading for three seconds. Calibrates pressure switches
Battery:
Self-contained rechargeable battery provides a minimum of six hours of completely portable usage. May be operated or recharged by connecting the power cord to 115 VAC. Handle, power switch, and low battery indicator included with this option. Analog display not included with this option. Also not available in rack-mount models
Outputs:
Analog: 4-20 mA, 0-10 VDC, 0-5 VDC
Digital: Parallel BCD, 20 mA loop, RS-232 simplex output
Min/Max:
Highest and lowest pressure readings stored in memory and recalled at the touch of a button |
