Three Piece Encapsulated Clamp Ball Valve
Sanitube Logo

Three Piece Encapsulated Clamp Ball Valve

Categories: , Tags: , , , , , , , ,

Product Description

  • Clamp end.
  • Body Working Pressure: 1000 PSI WOG.
  • Clamp End Working Pressure: 200 PSI WOG.
  • Working Temperature: -4°F to 300°F.
  • Investment casting.
  • Fully Encapsulated.
  • Locking handle.
  • ISO 5211 mounting pad.
  • Full port design.
Add to Quote

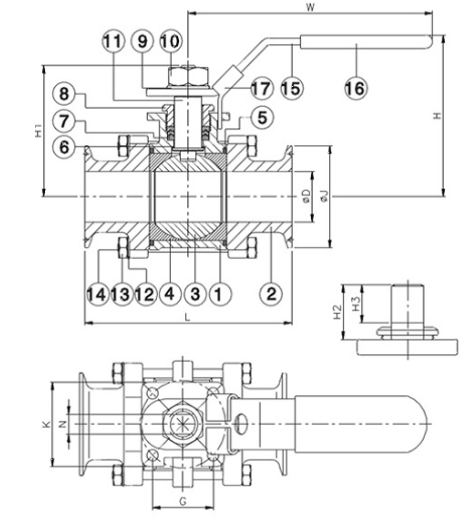

Description

  1. Body – T316 Stainless Steel
  2. Cap – T316 Stainless Steel
  3. Ball – T316 Stainless Steel
  4. Seat – PTFE
  5. Seal – PTFE
  6. Thrust Washer – PTFE
  7. Stem Packing – PTFE
  8. Gland Nut – T304 Stainless Steel
  9. Spring Washer – T304 Stainless Steel
  10. Stem Nut – T304 Stainless Steel
  11. Stem – T316 Stainless Steel
  12. Spring Washer – T304 Stainless Steel
  13. Nut – T304 Stainless Steel
  14. Bolt – T304 Stainless Steel
  15. Handle – T304 Stainless Steel
  16. Handle Sleeve – PVC
  17. Locking Device – T304 Stainless Steel
