Description

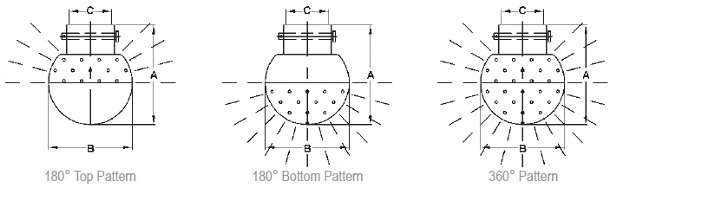

Stationary Spray Ball Specifications
Size (Tube OD) |
Spray Pattern | Dimensions | ||||||
360° | 180° Top | 180° Bottom | A | B | C | |||
1 “ | STC-100-360 | — | — | 3.040 | 2.450 | 1.005 | ||
1 “ | — | STC-100-180T | STC-100-180B | 3.540 | 2.950 | 1.005 | ||
1-1/2″ | STC-150-360 | STC-150-180T | STC-150-180B | 3.540 | 2.950 | 1.505 |
Notes:
- Sanitube spray balls are stationary. They are designed to be mounted to a tube or pipe.
- All spray balls are 100% T316L stainless steel, polished to a 180 grit finish on the inside and outside.
