MSI-8000 RF Remote Display

The MSI-8000 remote display makes wireless control easy with the ability to operate weighing systems from a distance. The wireless remote display can be used for viewing MSI ScaleCore-based crane scales and dynamometers, including any RF compatible MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh overhead crane scale, or MSI-7300 Dyna-Link 2 tension dynamometer. Both devices are compact and carry an RF effective range of 300 feet (line of sight) and operate on a license-free 2.4 GHz frequency. With user-friendly keypads, standard function keys for both devices include: On/Off, Zero, Tare and Print. In addition, two userdefined keys are included for peak hold, high resolution, total, view total, net/gross, and units switching. Three selectable setpoints come standard in both models, with two of the selectable setpoints utilizing the programmable user-defined keys.

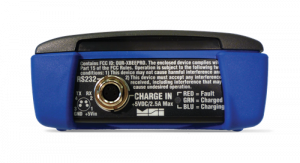

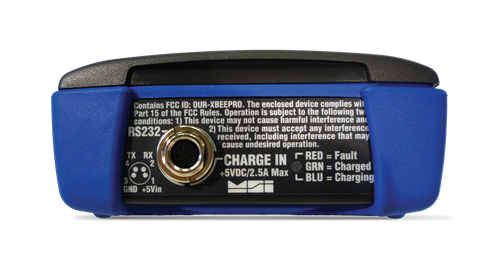

The MSI-8000 features a heavy-duty NEMA 4/IP65 enclosure, making it ideal for use in nearly any operating environment. The MSI-8000 features a large, six-digit, one-inch LCD display for improved visibility, and a user-friendly keypad for simple configuration and operation. Just one MSI-8000 communicates wirelessly with up to four compatible MSI devices and an integrated RS-232 data port allows the MSI-8000 to easily interface with peripheral devices such as printers, PCs and scoreboards. Power to the MSI-8000 is supplied by an internal rechargeable lithium polymer battery, which provides up to 24 hours of continuous use between charging.

• Compatible with all ScaleCore™ based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3,MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001 TranSend™, MSI-9600HT and MSI-6360
• LCD display
• Membrane keypad for remote control functionality
• User-definable function keys for added versatility
• Universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
