MotoWeigh IMW In-Motion Checkweighers and Conveyor Scales

Categories: , Tags: , , , ,

MotoWeigh…Made Your Way

Now producers of every size can automate their processes and achieve more, thanks to MotoWeigh In-Motion Checkweigher and Conveyor Systems. Harness a range of MotoWeigh components and accessories and you’ll not only automate but improve nearly every facet of your operation.

MotoWeigh is helping producers tighten target weights, loosen profit margins, and improve quality and customer satisfaction with options like bar code readers and metal detection systems. These are just a few of the benefits you’ll discover when MotoWeigh gives your business a much-needed edge over the competition.

The advantages of MotoWeigh are as limitless as your business’s potential. Contact Rice Lake to learn more about what MotoWeigh can do for you. We help design a system as unique as your application, customized to the specific demands of each environment, wet or dry.

Base components made to order:

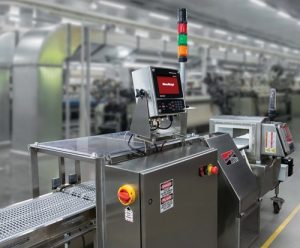

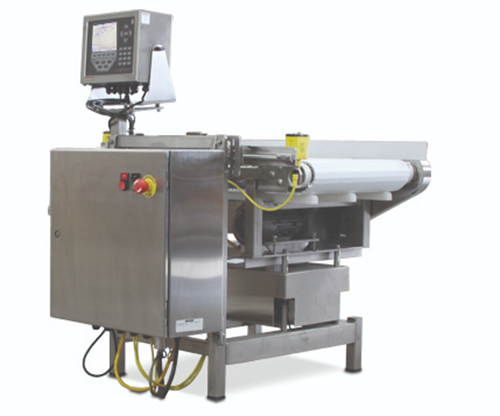

Checkweighers
For individual products, get quick, in-motion verification of a targeted weight range. Create up to four lanes of operation customized with bar code verification or reject systems. For product up to 200 pounds, non-Legal for Trade systems are available with a resolution as precise as one gram, at speeds up to 80 units per minute.

Conveyor Scales
For individual product labeling or weight-data capture, conveyor scales are designed to send weight data to peripheral devices such as PCs, printers and weigh price labelers. MotoWeigh conveyor scales offer Legal for Trade accuracy at up to 60 units per minute and 2000 divisions.

Software
  • Four levels of security
  • Real-time statistical information
  • Product report
  • Statistical report
  • Parameter report
  • User report
  • Store up to 1,000 different products
  • Five-zone classification
Control Panel

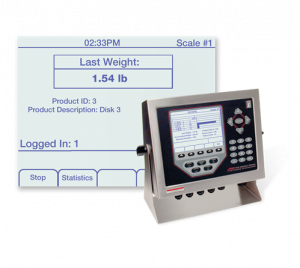

  • 1280 controller
  • Power disconnect with lock-out/tag-out
  • E-stop
  • VFD (variable frequency drive)
  • Motor overloads
Hardware
  • Square tube construction (SST or aluminum)
  • 32 in height from top of belt with ± 2.5 in of adjustment

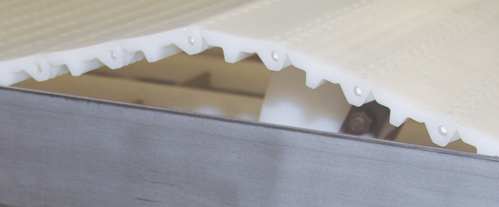

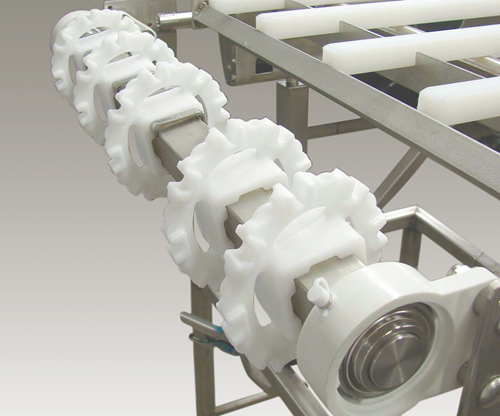

  • Modular belting
Add to Quote

Description

Construction:
Stainless steel food-grade
Stainless steel non-food-grade
Aluminum non-food-grade

Configurations:
Checkweigher
Conveyor scale

Speed:
Up to 240 ft per minute



 Container Types:
Boxes, bags, pouches, trays, tubs, cups, blister packs, display packs, clam shells

Belts:
Intralox® Habasit®

Power Configuration:
110 VAC single phase, 60 Hz
230/460 VAC 3 phase, 60 Hz

Warranty:
Two-year limited
(excludes powertrain and wear parts)

 Checkweigher Packages:
NTEP Certified and non-NTEP Certified packages available in stainless steel and aluminum for food and non-food-grade applications

Checkweigher Packages Include:
Common framework for mounting conveyor scale on same frame as infeed conveyor and indicator

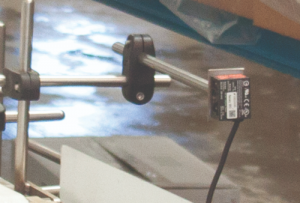

Basic control enclosure to interconnect wiring from photo eyes and divert solenoid and
conveyor on/off/E-stop

Options:

  • Divert methods:
    • Pneumatic pusher
    • Air blast
    • Drop conveyor
    • Paddle
    • Secondary diverter in series or parallel
  • One-, three- or five-zone communication tower
  • Audible alarm (non-washdown only)
  • Draft shields
  • Drop chutes
  • Pull cord E-stops
  • Portability package (non-NTEP Certified only)
  • Conveyor guide rails (round or flat)
  • Custom programming available
  • Food-grade SST angle construction, NEMA Type 4X IP66 washdown systems
  • Meets HACCP requirements
  • UL 508
  • NTEP Certified Legal for Trade (up to 2,000 divisions and 60 ppm)
  • Pacing conveyor
