Description
| Conveyor Width: 20 to 120 in (500 to 3,000 mm) Capacity: Belt Speed: |
Inclination: 25 degrees Material: Accuracy Guidelines: |
Load Cell: RL20001 alloy steel S-beam (capacity selected from application) Warranty: |

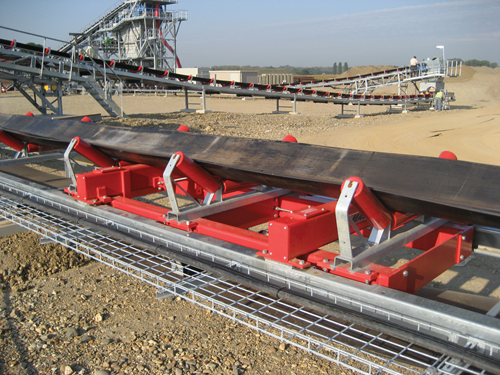

Master 14X Belt Scale Weigh Frame
Weigh three idlers on an inner frame, supported by four load cells with the 14x Master belt scale weigh frame. This creates an incredibly accurate belt scale qualified for high capacities and belt speeds. The 14x is often used in mining and aggregate applications. The frame is custom-made using the specifications of the conveyor belt, making it suitable for different belt conveyor models.
- Custom built for each application
- Fits standard conveyors
- Multiple idler design
- Inner frame has free-floating platform
Options
- 304 stainless steel
- Two, three or four weigh idlers
- Customer lifting weights available upon request
Applications
- Medium to heavy capacity, mining and aggregate
