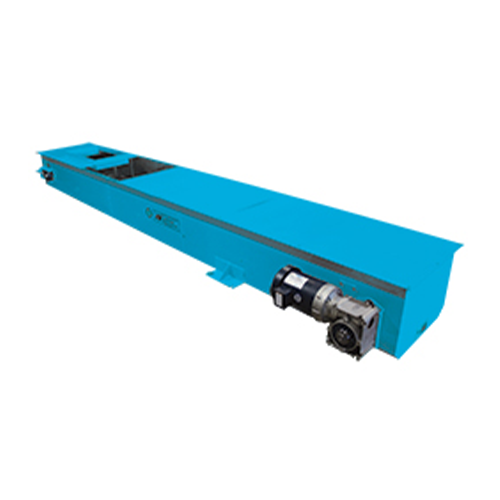

Horizontal DragSlide Conveyors

These conveyors work well for conveying film or fiber materials from one point to another in long horizontal runs. They are great transfer conveyors for a system which is moving free flowing materials and will keep your floor and shop area clean and neat.

  • Standard heavy duty units available for clean house conveying.
  • Floor supported or mobile bases available based on your facility needs.
  • In-feed hoppers designed to match up to shredder discharges or from the preceding conveyor.
  • Clear sight windows for viewing material flow.
  • Optional high-intensity rare earth plate magnets available.
  • UHMW flights allow for extended wear.

Application Datasheet – Fill Out and Return for Most Accurate Quote

Description

The shredding process generates a very high static charge when plastic films and other fiber materials are shredded. This can cause the material to stick to the steel frames of standard conveyor. Bunting’s DragSlide conveyors are totally enclosed. They use UHMW drag flights in a chain conveyor design to efficiently move and convey material within a sealed conveyor. This eliminates the daily house cleaning conventional belting conveyors require when handling this material.

Running static charged plastic on conventional belted conveyors can result in material being carried around and dropping off on the bottom side. This can result in a heap of material on the floor that demands constant cleaning. Using DragSlide conveyors for handling this type of material results in a much cleaner facility. This allows your employees to focus on production rather than unnecessary cleanup and maintenance.

Bunting’s DragSlide conveyors have extensive customization options and are available in various different styles.
