Description
Size Range(s)
- NPS 1/2 – 2
- (DN 15 – 200)
Pressure Rating
- ASME Classes 600 – 2500
Standard Connections
- Threaded, Socket Weld

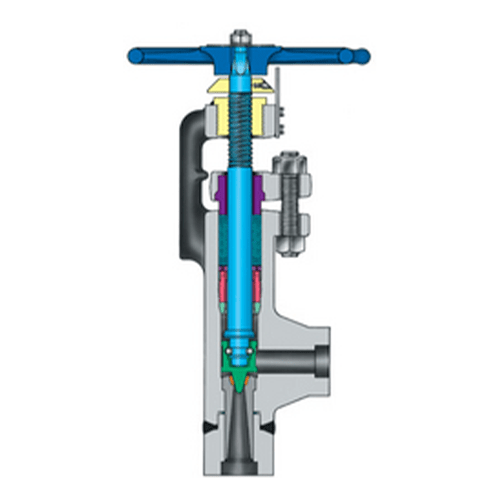

Continuous Blowdown Globe Valves
API 602 small forged globe valve designed for continuous blowdown.
- Complies to ASME B16.34 standards
- Incorporating a hardfaced CoCr alloy disc and seat and a venturi diffuser from stainless steel type 316.
- Orifice range: 1⁄8 to 11 1⁄16” (3.18 to 42.86 mm), depending on the capacity required.
- Can also be used for sampling and boiler feed pump bypass relief where high pressure drop causes erosion and cavitation that can destroy conventional globe valves
