| Size (Tube OD) |
Part Number | Dimensions | ||||||
| 304L | 316L | A | B | C | Wall | |||
| 3/4″ | x | 1/2″ | — | 31W6P-075050 | 1.000 | 0.750 | 0.500 | 0.065 |
| 1 “ | x | 1/2″ | — | 31W6P-100050 | 2.000 | 1.000 | 0.500 | 0.065 |
| 1 “ | x | 3/4″ | — | 31W6P-100075 | 1.000 | 1.000 | 0.750 | 0.065 |
| 1-1/2″ | x | 1/2″ | — | 31W6P-150050 | 4.000 | 1.500 | 0.500 | 0.065 |
| 1-1/2″ | x | 3/4″ | — | 31W6P-150075 | 2.000 | 1.500 | 0.750 | 0.065 |
| 1-1/2″ | x | 1 “ | 31W4P-150100 | 31W6P-150100 | 2.000 | 1.500 | 1.000 | 0.065 |
| 2″ | x | 1/2″ | 31W4P-200050 | 31W6P-200050 | 6.000 | 2.000 | 0.500 | 0.065 |
| 2″ | x | 3/4″ | 31W4P-200075 | 31W6P-200075 | 5.000 | 2.000 | 0.750 | 0.065 |
| 2 “ | x | 1 “ | 31W4P-200100 | 31W6P-200100 | 4.000 | 2.000 | 1.000 | 0.065 |
| 2 “ | x | 1-1/2″ | 31W4P-200150 | 31W6P-200150 | 2.000 | 2.000 | 1.500 | 0.065 |
| 2-1/2″ | x | 1″ | 31W4P-250100 | 31W6P-250100 | 6.000 | 2.500 | 1.000 | 0.065 |
| 2-1/2″ | x | 1-1/2″ | 31W4P-250150 | 31W6P-250150 | 4.000 | 2.500 | 1.500 | 0.065 |
| 2-1/2″ | x | 2 “ | 31W4P-250200 | 31W6P-250200 | 2.000 | 2.500 | 2.000 | 0.065 |
| 3 “ | x | 1 “ | 31W4P-300100 | 31W6P-300100 | 8.000 | 3.000 | 1.000 | 0.065 |
| 3 “ | x | 1-1/2″ | 31W4P-300150 | 31W6P-300150 | 6.000 | 3.000 | 1.500 | 0.065 |
| 3 “ | x | 2 “ | 31W4P-300200 | 31W6P-300200 | 4.000 | 3.000 | 2.000 | 0.065 |
| 3 “ | x | 2-1/2″ | 31W4P-300250 | 31W6P-300250 | 2.000 | 3.000 | 2.500 | 0.065 |
| 4 “ | x | 1 “ | 31W4P-400100 | 31W6P-400100 | 12.000 | 4.000 | 1.000 | 0.083 |
| 4 “ | x | 1-1/2″ | 31W4P-400150 | 31W6P-400150 | 10.000 | 4.000 | 1.500 | 0.083 |
| 4 “ | x | 2 “ | 31W4P-400200 | 31W6P-400200 | 8.000 | 4.000 | 2.000 | 0.083 |
| 4 “ | x | 2-1/2″ | 31W4P-400250 | 31W6P-400250 | 6.000 | 4.000 | 2.500 | 0.083 |
| 4 “ | x | 3 “ | 31W4P-400300 | 31W6P-400300 | 4.000 | 4.000 | 3.000 | 0.083 |
| 6 “ | x | 2 “ | 31W4P-600200 | 31W6P-600200 | 5.500 | 6.000 | 2.000 | 0.109 |
| 6 “ | x | 3 “ | 31W4P-600300 | 31W6P-600300 | 5.500 | 6.000 | 3.000 | 0.109 |
| 6 “ | x | 4 “ | 31W4P-600400 | 31W6P-600400 | 5.500 | 6.000 | 4.000 | 0.109 |
| 8 “ | x | 3 “ | 31W4P-800300 | 31W6P-800300 | 6.000 | 8.000 | 3.000 | 0.109 |
| 8 “ | x | 4 “ | 31W4P-800400 | 31W6P-800400 | 6.000 | 8.000 | 4.000 | 0.109 |
| 8 “ | x | 6 “ | 31W4P-800600 | 31W6P-800600 | 6.000 | 8.000 | 6.000 | 0.109 |

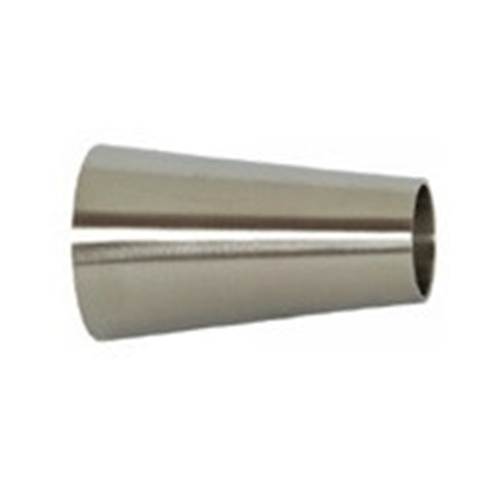

The Concentric Reducer Fitting is manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications. Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.
