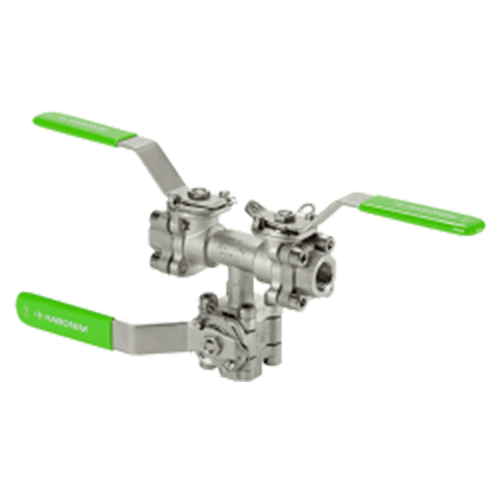

47DS Double Block and Bleed Floating Ball Valve
Habonim Valves and Actuators Logo

47DS Double Block and Bleed Floating Ball Valve

Categories: , Tags: , , , , , , , , , , ,

Total HermetiX Integrity Package:

  • Zero fugitive-emission no maintenance stem sealing.
  • Double body sealing.
  • Fire safe.
  • 100% tested.
  • 100% materials & processing back-tracking.
  • Quality system approved for API 6D, PED/TPED, SIL, ISO 9001.

End Connections variety:

  • Wide range of end connections available for assembly on a generic center section in 3 pieces series, standard or full port.
  • Flanged connections comply with ANSI B16.5 with standard or full port and EN 1092 with full port.

Materials:

  • Stainless Steel, Carbon Steel, special alloys as cast, forge or bar stock.
  • Variety of polymers and elastomers for wide range of applications.
Add to Quote

Description

Size Range: 1/4″ to 2-1/2″ (DN8 – DN65)

Pressure Range: Class 600

  • Double Block & Blead (DB&B) / Dual-Safe valve optimal design.
  • Casted body for optimized cost affectivity.
  • Incorporates two main isolation valves and one bleed valve in a single body construction.
  • Lowest possible number of potential leakage points, reduces overall system size and weight by integrating valves, piping, and fittings into one compact design.
  • Easy to maintain
